How to Build a Brand Page (Kadence Woo Extras – Product Brands)

Victor
September 15, 2025

Background:

  • We need a page that dynamically shows all Brands with their logos and links to their products
  • Brand is a custom post type
  • There are two. We are using the one kadence made but might be better method (please advise as best)

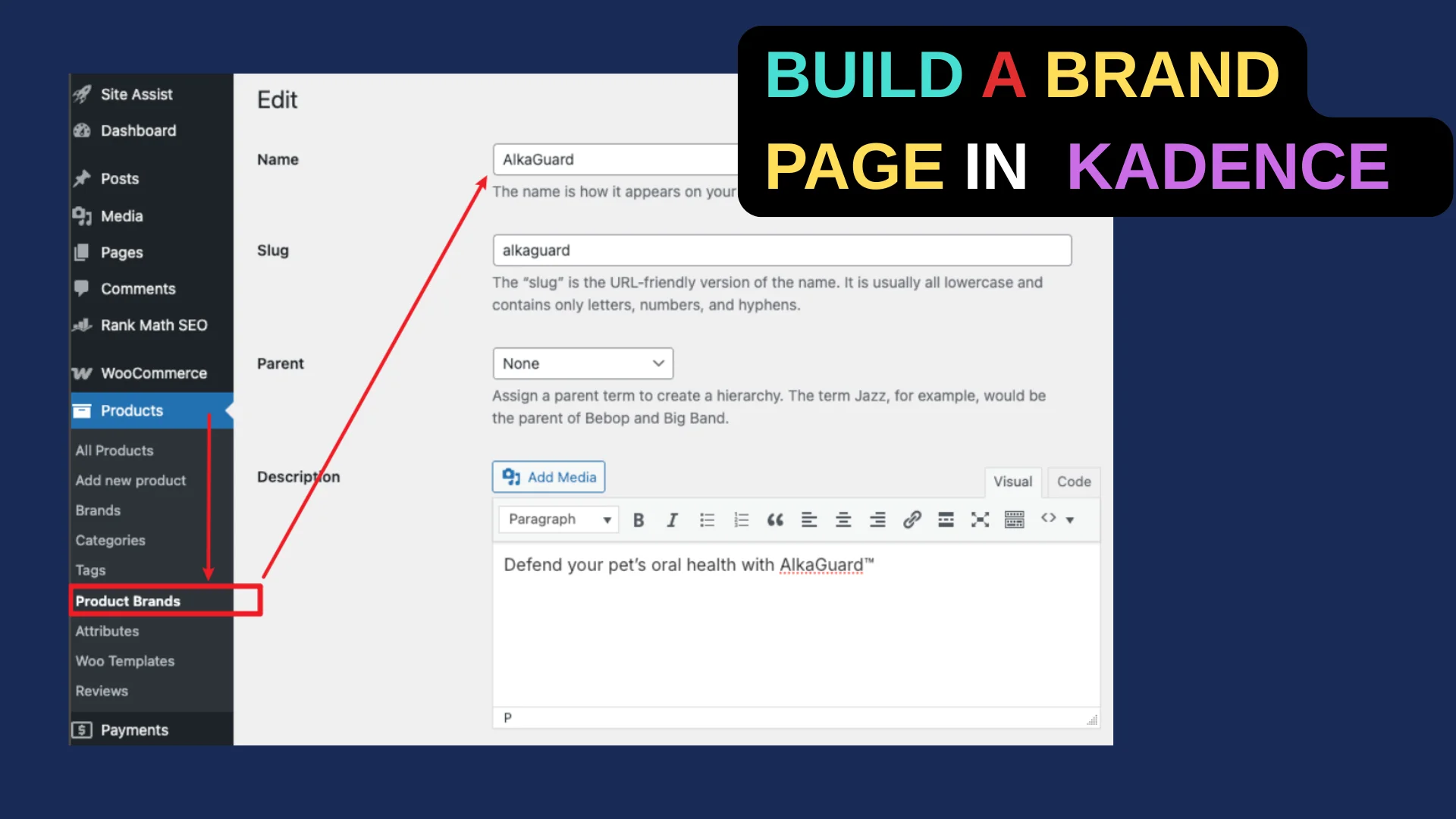

build a brand page in Kadence

Is is possible to create a page to show all the products brands with their logos/feature images and brand names? Is it possible to do it via Kadence blocks – portfolio or post grid, or by using shortcodes?

we need make a page with hundreds of brands and doing it manualy is disaster

It’s best to leverage the built-in “brand category” that is created by the Kadence woocommerce shop kit.

So I explored into the source code of that plugin and found out a solution.

Simply put the codes into your functions.php or any plugin like “code snippet” so to make the short code work.

After that, simply create a page that you want to show all the brads in the “brand category”.

Short code is

 [brands_list]

It also has a pagination function: it loads 12 brads per page then paginated the rest.

Here’s the code to put into the functions.php

/**
 * Custom Brands Shortcode for WordPress
 * To use this shortcode, make sure to activate Kadence shop kit
 *
 * Usage: [brands_list] or [brands_list columns="4" show_count="true" show_image="true"]
 *
 * Requirements:
 * - WooCommerce plugin must be active
 * - Kadence WooCommerce Extras (Shop Kit) plugin must be active
 * - Product brands feature must be enabled in Kadence settings
 */

// Prevent direct access
if (!defined('ABSPATH')) {
    exit;
}

/**
 * Check if all required plugins and features are available
 *
 * @return array Array with 'status' (bool) and 'message' (string)
 */
function check_brands_requirements() {
    // Check if WooCommerce is active
    if (!class_exists('WooCommerce')) {
        return array(
            'status' => false,
            'message' => 'WooCommerce plugin is required but not active. Please install and activate WooCommerce.'
        );
    }

    // Check if Kadence WooCommerce Extras is active by checking for its constants or functions
    if (!defined('KADENCE_WOO_EXTRAS_VERSION') && !function_exists('init_kadence_woo_extras')) {
        return array(
            'status' => false,
            'message' => 'Kadence WooCommerce Extras (Shop Kit) plugin is required but not active. Please install and activate the plugin.'
        );
    }

    // Check if product brands feature is enabled
    $shopkit_settings = get_option('kt_woo_extras');
    if (!is_array($shopkit_settings)) {
        $shopkit_settings = json_decode($shopkit_settings, true);
    }

    if (empty($shopkit_settings['kt_product_brands_options'])) {
        return array(
            'status' => false,
            'message' => 'Product brands feature is not enabled in Kadence Shop Kit settings. Please enable it in WooCommerce > Shop Kit > Product Brands.'
        );
    }

    // Check if the product brands taxonomy exists
    if (!taxonomy_exists('product_brands')) {
        return array(
            'status' => false,
            'message' => 'Product brands taxonomy is not available. Please check your Kadence Shop Kit configuration.'
        );
    }

    return array(
        'status' => true,
        'message' => ''
    );
}

/**
 * Register the brands list shortcode
 */
function register_brands_list_shortcode() {
    add_shortcode('brands_list', 'display_brands_list_shortcode');
}
add_action('init', 'register_brands_list_shortcode');

/**
 * Display brands list shortcode
 *
 * @param array $atts Shortcode attributes
 * @return string HTML output
 */
function display_brands_list_shortcode($atts) {
    // Check requirements first
    $requirements_check = check_brands_requirements();
    if (!$requirements_check['status']) {
        return '<div class="brands-error" style="padding: 15px; background: #fff3cd; border: 1px solid #ffeaa7; border-radius: 4px; color: #856404; margin: 10px 0;"><strong>Brands Shortcode Error:</strong> ' . esc_html($requirements_check['message']) . '</div>';
    }

    // Default attributes
    $atts = shortcode_atts(array(
        'columns' => '3',           // Number of columns (1-6)
        'show_count' => 'true',     // Show product count
        'show_image' => 'true',     // Show brand image/logo
        'image_size' => 'medium',   // Image size (thumbnail, medium, large, full)
        'hide_empty' => 'true',     // Hide brands with no products
        'orderby' => 'name',        // Order by (name, count, slug, term_group)
        'order' => 'ASC',           // Order direction (ASC, DESC)
        'limit' => '',              // Limit number of brands (empty for all)
        'class' => '',              // Additional CSS classes
        'per_page' => '12',         // Number of brands per page
        'show_pagination' => 'true', // Show pagination navigation
    ), $atts, 'brands_list');

    // Get current page number
    $current_page = 1;
    if (isset($_GET['brands_page']) && is_numeric($_GET['brands_page'])) {
        $current_page = max(1, intval($_GET['brands_page']));
    }

    // Calculate pagination
    $per_page = intval($atts['per_page']);
    $offset = ($current_page - 1) * $per_page;

    // Prepare query arguments for counting total brands
    $count_args = array(
        'taxonomy' => 'product_brands',
        'hide_empty' => ($atts['hide_empty'] === 'true'),
        'fields' => 'count',
    );

    // Get total count
    $total_brands = get_terms($count_args);
    $total_pages = ceil($total_brands / $per_page);

    // Prepare query arguments for actual brands
    $args = array(
        'taxonomy' => 'product_brands',
        'hide_empty' => ($atts['hide_empty'] === 'true'),
        'orderby' => $atts['orderby'],
        'order' => $atts['order'],
        'number' => $per_page,
        'offset' => $offset,
    );

    // Override with limit if specified (takes precedence over pagination)
    if (!empty($atts['limit']) && is_numeric($atts['limit'])) {
        $args['number'] = intval($atts['limit']);
        unset($args['offset']);
        $atts['show_pagination'] = 'false'; // Disable pagination when limit is used
    }

    // Get brand terms
    $brands = get_terms($args);

    if (is_wp_error($brands) || empty($brands)) {
        return '<p>No brands found.</p>';
    }

    // Start building output
    $columns = max(1, min(6, intval($atts['columns'])));
    $additional_class = !empty($atts['class']) ? ' ' . esc_attr($atts['class']) : '';

    $output = '<div class="brands-list-container' . $additional_class . '">';
    $output .= '<div class="brands-grid brands-columns-' . $columns . '">';

    foreach ($brands as $brand) {
        $brand_link = get_term_link($brand);
        $brand_image = '';
        $product_count = $brand->count;

        // Get brand image if enabled
        if ($atts['show_image'] === 'true') {
            $image_id = get_term_meta($brand->term_id, '_kt_woo_extras_brand_image', true);
            if (!empty($image_id) && is_array($image_id) && isset($image_id[0])) {
                $image_url = wp_get_attachment_image_url($image_id[0], $atts['image_size']);
                if ($image_url) {
                    $brand_image = '<div class="brand-image"><img src="' . esc_url($image_url) . '" alt="' . esc_attr($brand->name) . '" /></div>';
                }
            }
        }

        // Build brand item HTML
        $output .= '<div class="brand-item">';
        $output .= '<a href="' . esc_url($brand_link) . '" class="brand-link">';

        if (!empty($brand_image)) {
            $output .= $brand_image;
        }

        $output .= '<div class="brand-info">';
        $output .= '<h3 class="brand-name">' . esc_html($brand->name) . '</h3>';

        if (!empty($brand->description)) {
            $output .= '<p class="brand-description">' . esc_html($brand->description) . '</p>';
        }

        if ($atts['show_count'] === 'true' && $product_count > 0) {
            $output .= '<span class="brand-count">(' . $product_count . ' ' . _n('product', 'products', $product_count, 'textdomain') . ')</span>';
        }

        $output .= '</div>'; // .brand-info
        $output .= '</a>'; // .brand-link
        $output .= '</div>'; // .brand-item
    }

    $output .= '</div>'; // .brands-grid

    // Add pagination if enabled and there are multiple pages
    if ($atts['show_pagination'] === 'true' && $total_pages > 1) {
        $output .= '<div class="brands-pagination">';

        // Get current URL without brands_page parameter
        $current_url = remove_query_arg('brands_page');

        // Previous page link
        if ($current_page > 1) {
            $prev_url = add_query_arg('brands_page', $current_page - 1, $current_url);
            $output .= '<a href="' . esc_url($prev_url) . '" class="brands-pagination-prev">&laquo; Previous</a>';
        } else {
            $output .= '<span class="brands-pagination-prev disabled">&laquo; Previous</span>';
        }

        // Page numbers
        $output .= '<span class="brands-pagination-info">';

        // Show page numbers (with ellipsis for large page counts)
        $start_page = max(1, $current_page - 2);
        $end_page = min($total_pages, $current_page + 2);

        if ($start_page > 1) {
            $first_url = add_query_arg('brands_page', 1, $current_url);
            $output .= '<a href="' . esc_url($first_url) . '" class="brands-pagination-number">1</a>';
            if ($start_page > 2) {
                $output .= '<span class="brands-pagination-ellipsis">...</span>';
            }
        }

        for ($i = $start_page; $i <= $end_page; $i++) {
            if ($i == $current_page) {
                $output .= '<span class="brands-pagination-number current">' . $i . '</span>';
            } else {
                $page_url = add_query_arg('brands_page', $i, $current_url);
                $output .= '<a href="' . esc_url($page_url) . '" class="brands-pagination-number">' . $i . '</a>';
            }
        }

        if ($end_page < $total_pages) {
            if ($end_page < $total_pages - 1) {
                $output .= '<span class="brands-pagination-ellipsis">...</span>';
            }
            $last_url = add_query_arg('brands_page', $total_pages, $current_url);
            $output .= '<a href="' . esc_url($last_url) . '" class="brands-pagination-number">' . $total_pages . '</a>';
        }

        $output .= '</span>';

        // Next page link
        if ($current_page < $total_pages) {
            $next_url = add_query_arg('brands_page', $current_page + 1, $current_url);
            $output .= '<a href="' . esc_url($next_url) . '" class="brands-pagination-next">Next &raquo;</a>';
        } else {
            $output .= '<span class="brands-pagination-next disabled">Next &raquo;</span>';
        }

        $output .= '</div>'; // .brands-pagination
    }

    $output .= '</div>'; // .brands-list-container

    return $output;
}

/**
 * Add CSS styles for the brands shortcode
 */
function brands_list_shortcode_styles() {
    if (has_shortcode(get_post()->post_content, 'brands_list') || is_admin()) {
        ?>
        <style type="text/css">
        .brands-list-container {
            margin: 20px 0;
        }

        .brands-grid {
            display: grid;
            gap: 20px;
            margin-bottom: 20px;
        }

        .brands-columns-1 { grid-template-columns: 1fr; }
        .brands-columns-2 { grid-template-columns: repeat(2, 1fr); }
        .brands-columns-3 { grid-template-columns: repeat(3, 1fr); }
        .brands-columns-4 { grid-template-columns: repeat(4, 1fr); }
        .brands-columns-5 { grid-template-columns: repeat(5, 1fr); }
        .brands-columns-6 { grid-template-columns: repeat(6, 1fr); }

        @media (max-width: 768px) {
            .brands-columns-3,
            .brands-columns-4,
            .brands-columns-5,
            .brands-columns-6 {
                grid-template-columns: repeat(2, 1fr);
            }
        }

        @media (max-width: 480px) {
            .brands-grid {
                grid-template-columns: 1fr !important;
            }
        }

        .brand-item {
            border: 1px solid #e0e0e0;
            border-radius: 8px;
            overflow: hidden;
            transition: transform 0.3s ease, box-shadow 0.3s ease;
            background: #fff;
        }

        .brand-item:hover {
            transform: translateY(-5px);
            box-shadow: 0 5px 15px rgba(0,0,0,0.1);
        }

        .brand-link {
            display: block;
            text-decoration: none;
            color: inherit;
            height: 100%;
        }

        .brand-image {
            display: flex;
            align-items: center;
            justify-content: center;
            padding: 20px;
            background: #f9f9f9;
            min-height: 160px;
        }

        .brand-image img {
            max-width: 100%;
            height: auto;
            max-height: 120px;
            object-fit: contain;
        }

        .brand-info {
            padding: 15px;
            text-align: center;
        }

        .brand-name {
            margin: 0 0 10px 0;
            font-size: 18px;
            font-weight: 600;
            color: #333;
        }

        .brand-description {
            margin: 0 0 10px 0;
            font-size: 14px;
            font-weight: 400;
            color: #666;
            line-height: 1.4;
        }

        .brand-count {
            font-size: 12px;
            color: #999;
            font-style: italic;
        }

        /* Alternative list style */
        .brands-list-style .brands-grid {
            display: block;
        }

        .brands-list-style .brand-item {
            display: flex;
            align-items: center;
            margin-bottom: 15px;
            padding: 15px;
        }

        .brands-list-style .brand-image {
            flex: 0 0 80px;
            margin-right: 15px;
            padding: 10px;
        }

        .brands-list-style .brand-image img {
            max-height: 60px;
        }

        .brands-list-style .brand-info {
            flex: 1;
            text-align: left;
            padding: 0;
        }

        /* Pagination Styles */
        .brands-pagination {
            display: flex;
            justify-content: center;
            align-items: center;
            margin-top: 30px;
            padding: 20px 0;
            gap: 10px;
            flex-wrap: wrap;
        }

        .brands-pagination a,
        .brands-pagination span {
            display: inline-block;
            padding: 8px 12px;
            text-decoration: none;
            border: 1px solid #ddd;
            border-radius: 4px;
            color: #333;
            background: #fff;
            transition: all 0.3s ease;
            font-size: 14px;
            line-height: 1;
        }

        .brands-pagination a:hover {
            background: #f5f5f5;
            border-color: #999;
            color: #000;
        }

        .brands-pagination .current {
            background: #0073aa;
            color: #fff;
            border-color: #0073aa;
            font-weight: bold;
        }

        .brands-pagination .disabled {
            color: #999;
            background: #f9f9f9;
            border-color: #e0e0e0;
            cursor: not-allowed;
        }

        .brands-pagination-info {
            display: flex;
            align-items: center;
            gap: 5px;
        }

        .brands-pagination-ellipsis {
            padding: 8px 4px;
            border: none;
            background: none;
            color: #666;
        }

        .brands-pagination-prev,
        .brands-pagination-next {
            font-weight: 500;
        }

        @media (max-width: 480px) {
            .brands-pagination {
                gap: 5px;
            }

            .brands-pagination a,
            .brands-pagination span {
                padding: 6px 8px;
                font-size: 12px;
            }

            .brands-pagination-prev,
            .brands-pagination-next {
                padding: 6px 10px;
            }
        }
        </style>
        <?php
    }
}
add_action('wp_head', 'brands_list_shortcode_styles');

/**
 * Alternative shortcode for simple brand links list
 */
function display_brands_links_shortcode($atts) {
    // Check requirements first
    $requirements_check = check_brands_requirements();
    if (!$requirements_check['status']) {
        return '<div class="brands-error" style="padding: 15px; background: #fff3cd; border: 1px solid #ffeaa7; border-radius: 4px; color: #856404; margin: 10px 0;"><strong>Brands Shortcode Error:</strong> ' . esc_html($requirements_check['message']) . '</div>';
    }

    $atts = shortcode_atts(array(
        'separator' => ' | ',
        'show_count' => 'false',
        'hide_empty' => 'true',
        'orderby' => 'name',
        'order' => 'ASC',
        'limit' => '',
    ), $atts, 'brands_links');

    $args = array(
        'taxonomy' => 'product_brands',
        'hide_empty' => ($atts['hide_empty'] === 'true'),
        'orderby' => $atts['orderby'],
        'order' => $atts['order'],
    );

    if (!empty($atts['limit']) && is_numeric($atts['limit'])) {
        $args['number'] = intval($atts['limit']);
    }

    $brands = get_terms($args);

    if (is_wp_error($brands) || empty($brands)) {
        return '<p>No brands found.</p>';
    }

    $links = array();
    foreach ($brands as $brand) {
        $brand_link = get_term_link($brand);
        $link_text = $brand->name;

        if ($atts['show_count'] === 'true' && $brand->count > 0) {
            $link_text .= ' (' . $brand->count . ')';
        }

        $links[] = '<a href="' . esc_url($brand_link) . '">' . esc_html($link_text) . '</a>';
    }

    return '<div class="brands-links">' . implode($atts['separator'], $links) . '</div>';
}
add_shortcode('brands_links', 'display_brands_links_shortcode');

/**
 * Register shortcode in Gutenberg
 */
function register_brands_shortcode_block() {
    if (function_exists('register_block_type')) {
        wp_register_script(
            'brands-shortcode-block',
            false,
            array('wp-blocks', 'wp-element', 'wp-editor'),
            '1.0.0',
            true
        );

        wp_add_inline_script('brands-shortcode-block', '
            (function(blocks, element, editor) {
                var el = element.createElement;
                var RichText = editor.RichText;

                blocks.registerBlockType("custom/brands-shortcode", {
                    title: "Brands List",
                    icon: "tag",
                    category: "widgets",

                    edit: function(props) {
                        return el("div", {
                            className: "brands-shortcode-placeholder",
                            style: { padding: "20px", border: "1px dashed #ccc", textAlign: "center" }
                        }, "[brands_list] - Brands will display on frontend");
                    },

                    save: function(props) {
                        return el("div", {}, "[brands_list]");
                    }
                });
            })(window.wp.blocks, window.wp.element, window.wp.editor);
        ');
    }
}
add_action('enqueue_block_editor_assets', 'register_brands_shortcode_block');

/**
 * Display admin notice if requirements are not met
 */
function brands_shortcode_admin_notice() {
    // Only show to administrators
    if (!current_user_can('manage_options')) {
        return;
    }

    $requirements_check = check_brands_requirements();
    if (!$requirements_check['status']) {
        echo '<div class="notice notice-warning is-dismissible">';
        echo '<p><strong>Brands Shortcode:</strong> ' . esc_html($requirements_check['message']) . '</p>';
        echo '</div>';
    }
}
add_action('admin_notices', 'brands_shortcode_admin_notice');

/**
 * Add safety check for function existence to prevent conflicts
 */
if (!function_exists('check_brands_requirements')) {
    /**
     * Fallback function if somehow the main function doesn't exist
     */
    function check_brands_requirements_fallback() {
        return 'Brands shortcode functions are not properly loaded.';
    }
}

/**
 * Deactivation cleanup (optional)
 */
function brands_shortcode_deactivation_cleanup() {
    // Clear any cached data if needed
    delete_transient('brands_list_cache');
}
// Uncomment the line below if you convert this to a plugin
// register_deactivation_hook(__FILE__, 'brands_shortcode_deactivation_cleanup');

Support My Work

If you enjoy my content, consider buying me a coffee or shopping through my Rakuten link to support me!

Buy Me a Coffee Shop with Rakuten

Victor

Founder of WPUtopia.com🕵️I would appreciate it if you could leave me a comment!

Website
Related Articles

You May Also Like

dynamic-wholesale-price

Show Dynamic Wholesale Price in Kadence sticky-add-to-cart+WooCommerce + B2Bking

The Site is build with Kadence along with the WooCommerce and B2Bking plugin. My client...

Read More
free-shipping notice

Add “spend xx more and get free shipping” message on...

Updated Sep.10, 2025 The previous code has bugs, as my client said “I noticed a...

Read More
website headache

Why Changing Your WordPress Theme Can Wreck Your Website

I recently heard a jaw-dropping story from an SEO specialist. Their boss, frustrated with the...

Read More

Send Message

Chat with me

Start a Conversation

Hi! Let's connect on your preferred platform.

WhatsApp Fiverr Upwork
Victor Avatar
