WP Offload Media Simple Illustration - 403,404 and How to Fix Them

This tutorial is for WP Offload Media Plugin + Amazon S3 and Cloudfront CDN.

Let’s get started. You can click on the image to start a slider for a better experience.

Create AWS Users

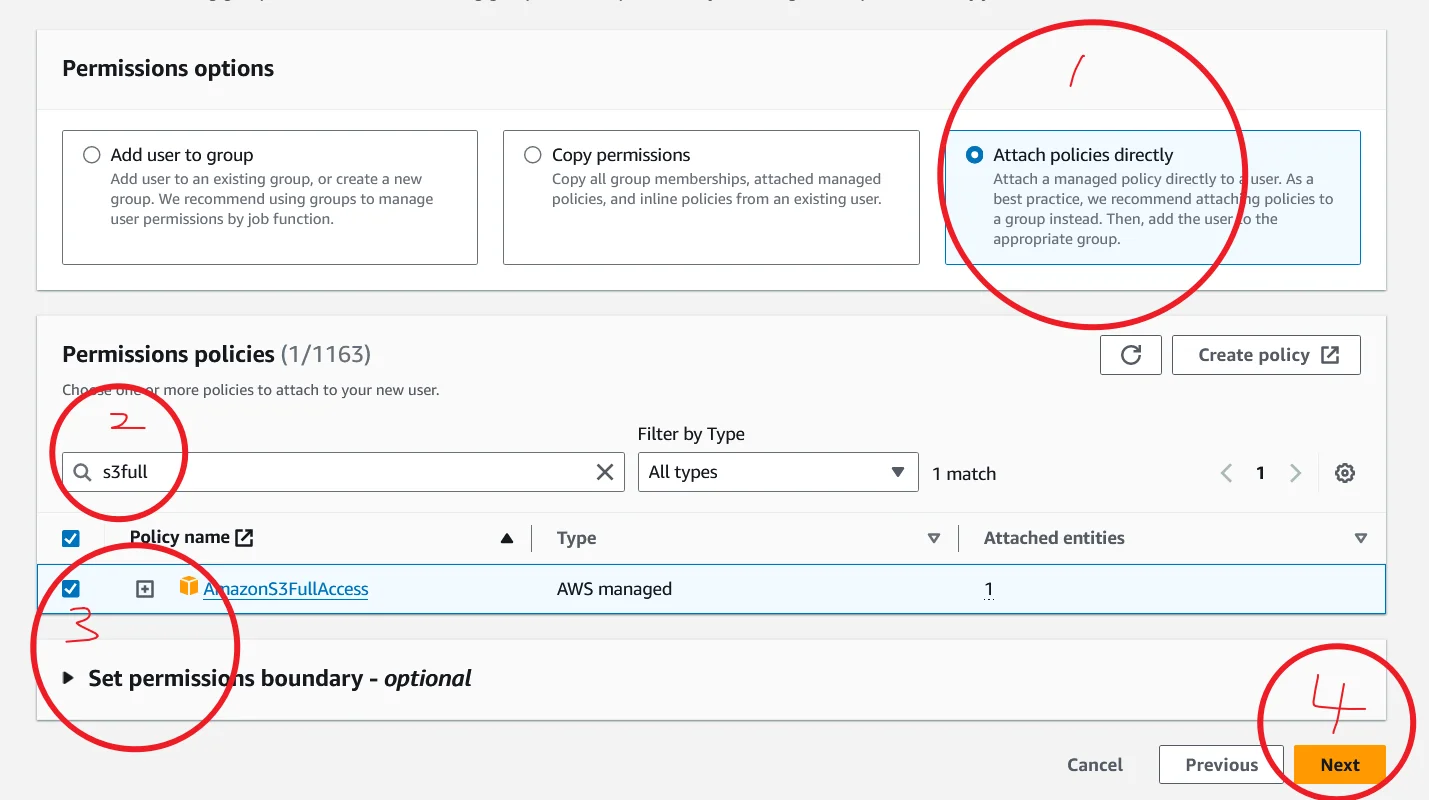

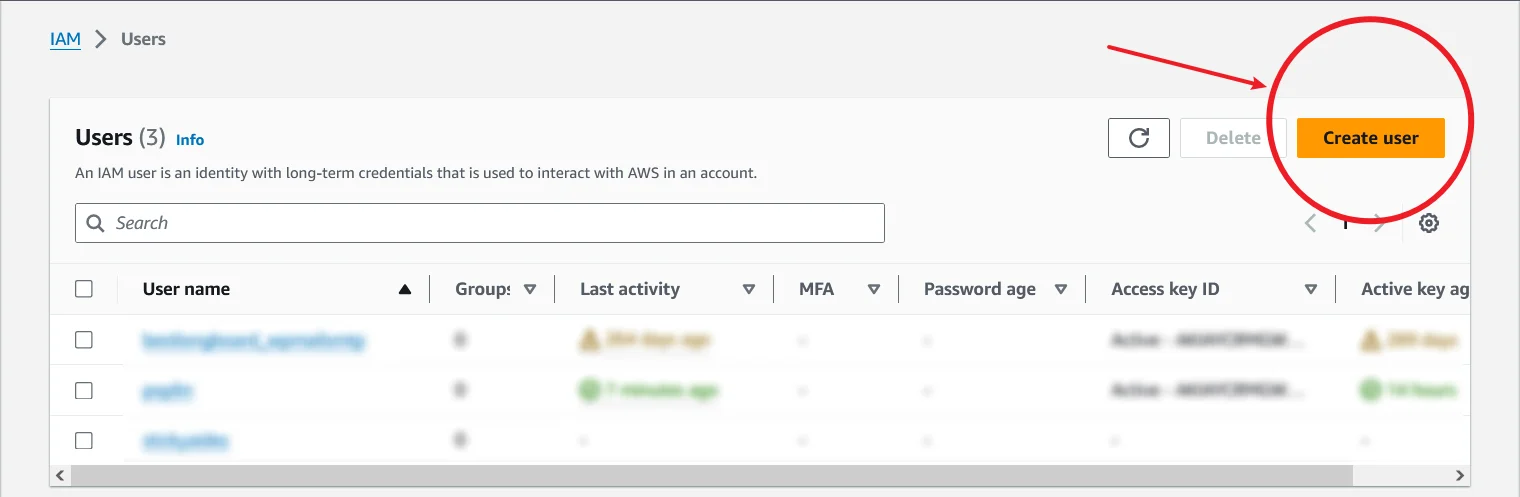

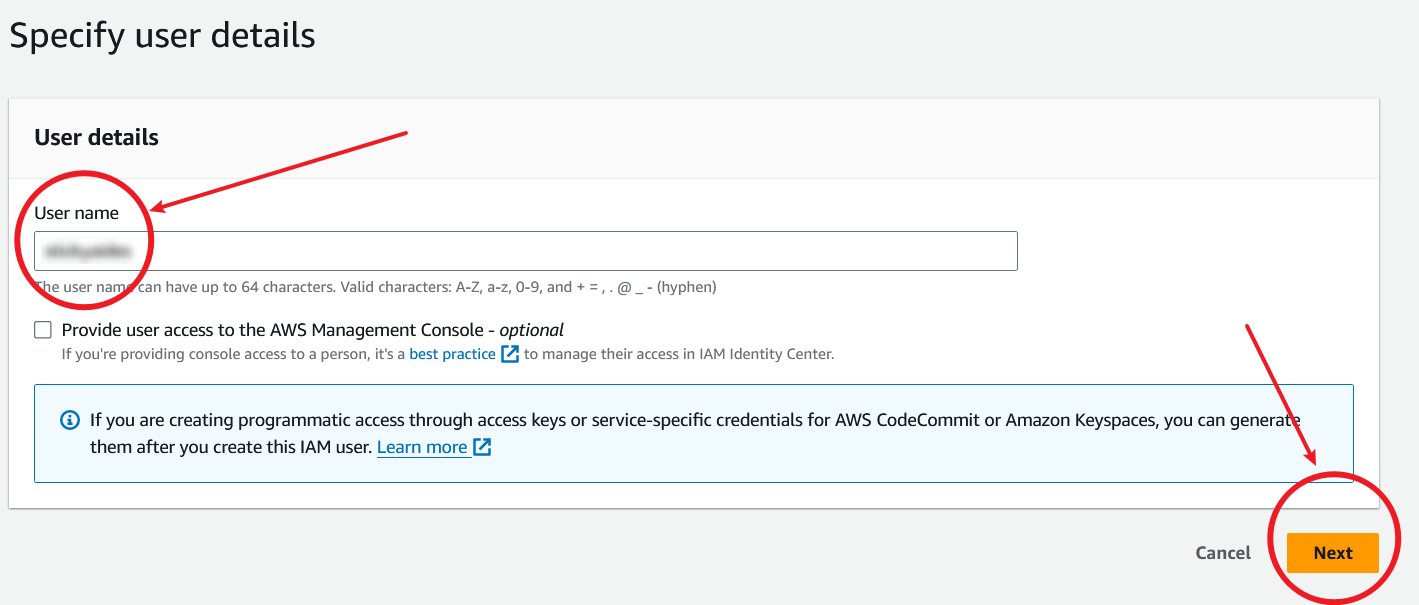

Navigate to the IAM Users page in the AWS Console

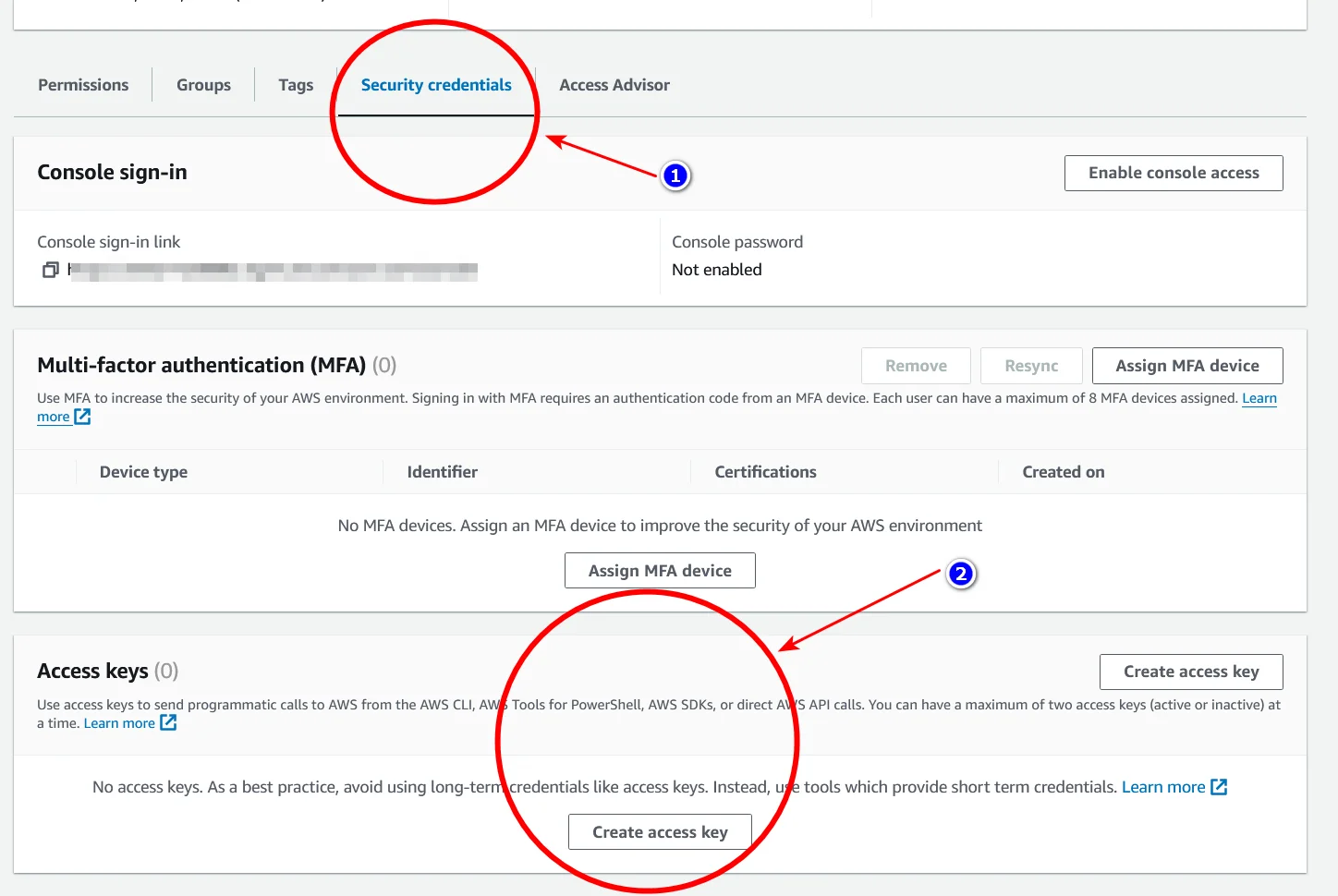

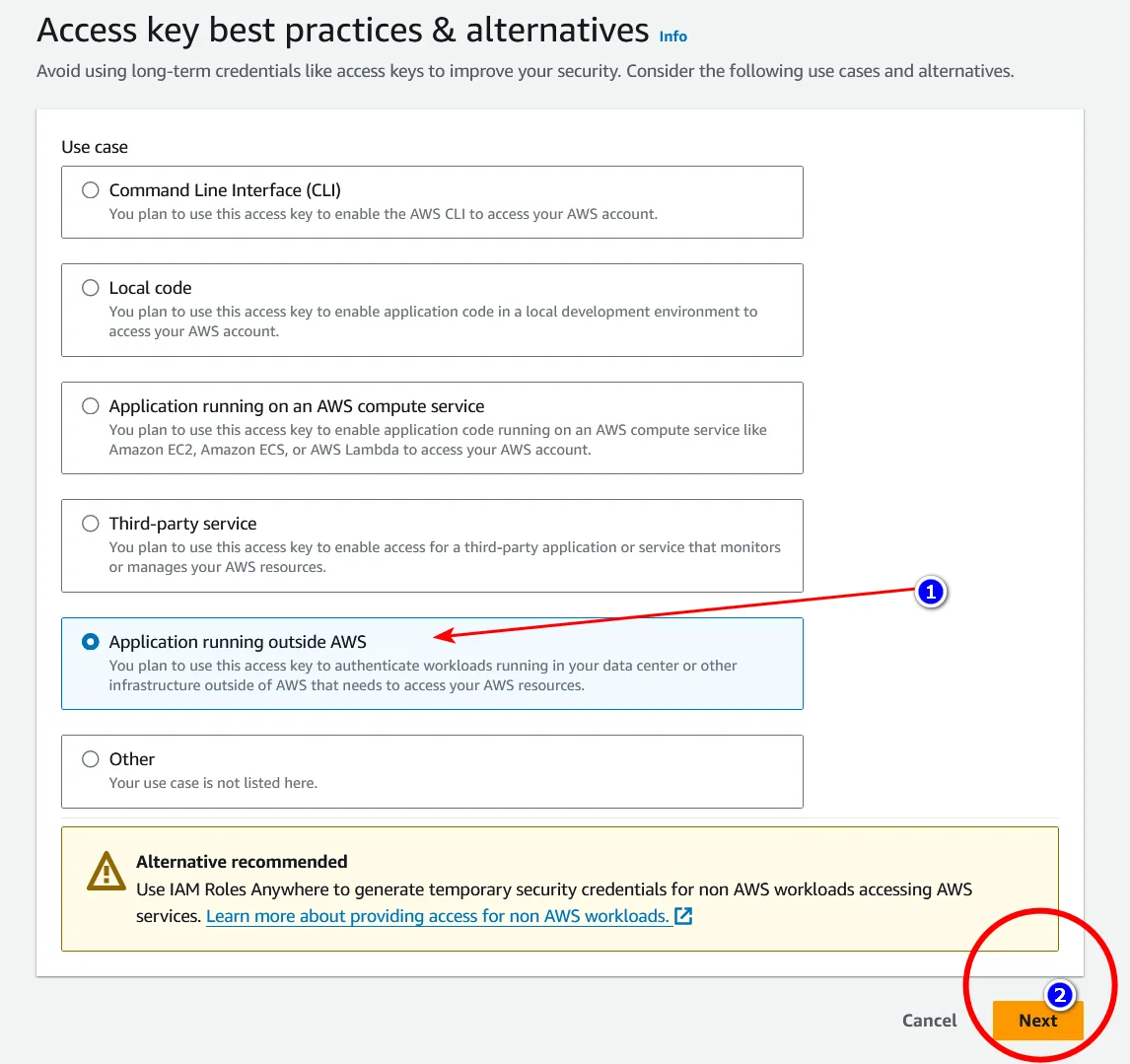

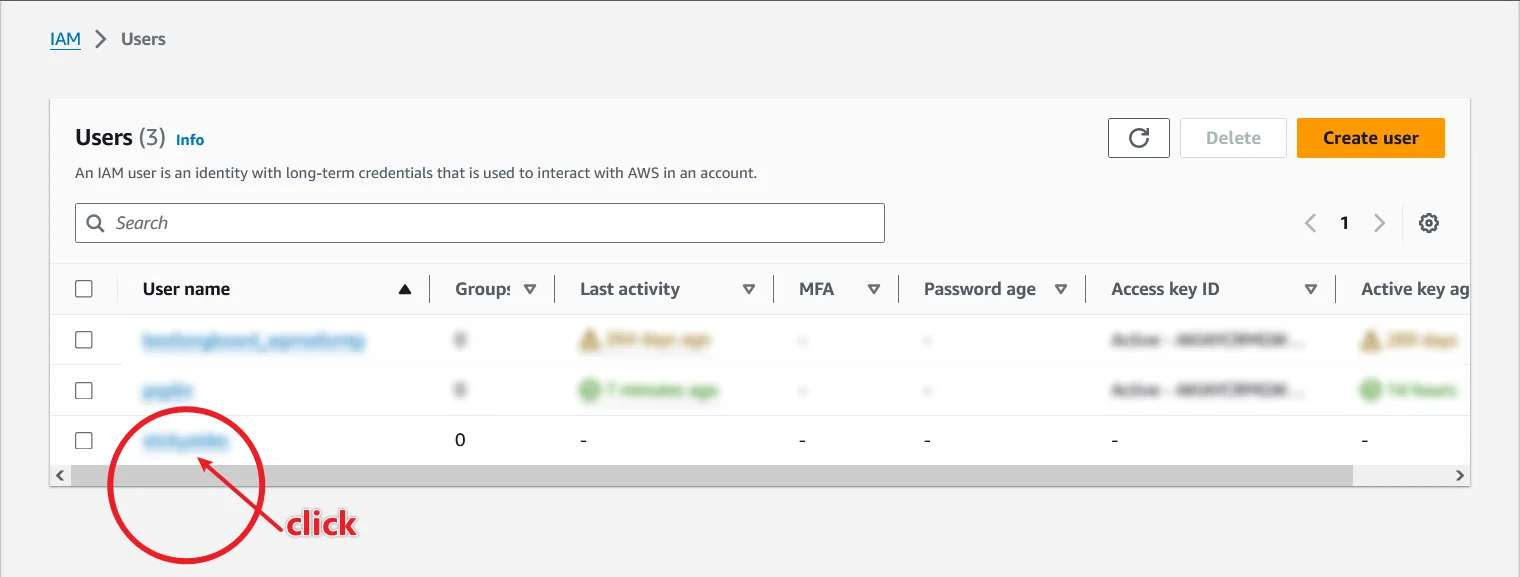

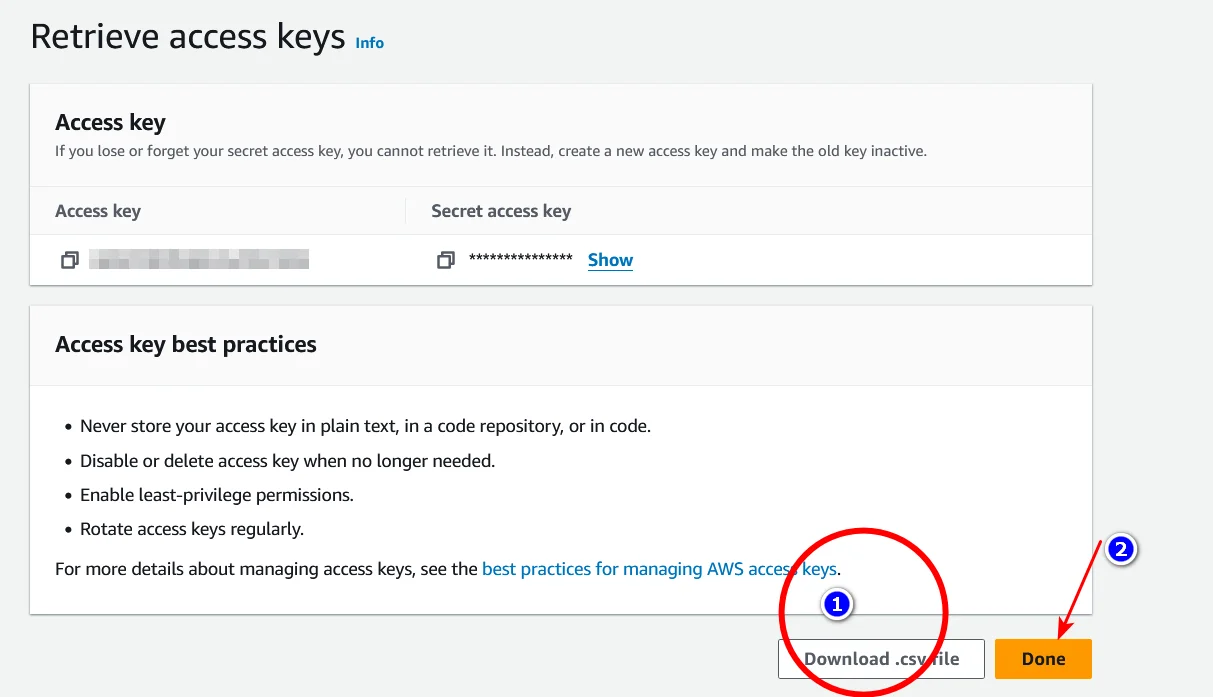

Create Access Keys

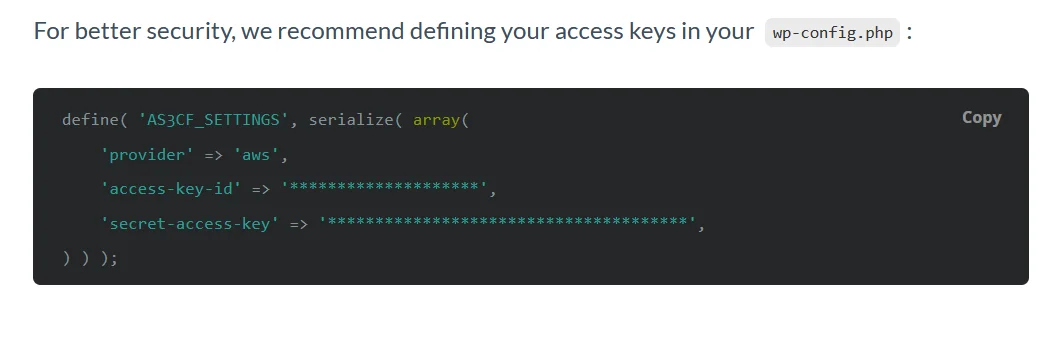

Now, it’s time to edit the wp-config.php

Find this line:

/* Add any custom values between this line and the "stop editing" line. */



/* That's all, stop editing! Happy publishing. */

Insert the info between the above lines:

define( 'AS3CF_SETTINGS', serialize( array(
    'provider' => 'aws',
    'access-key-id' => '********************',
    'secret-access-key' => '**************************************',
) ) );

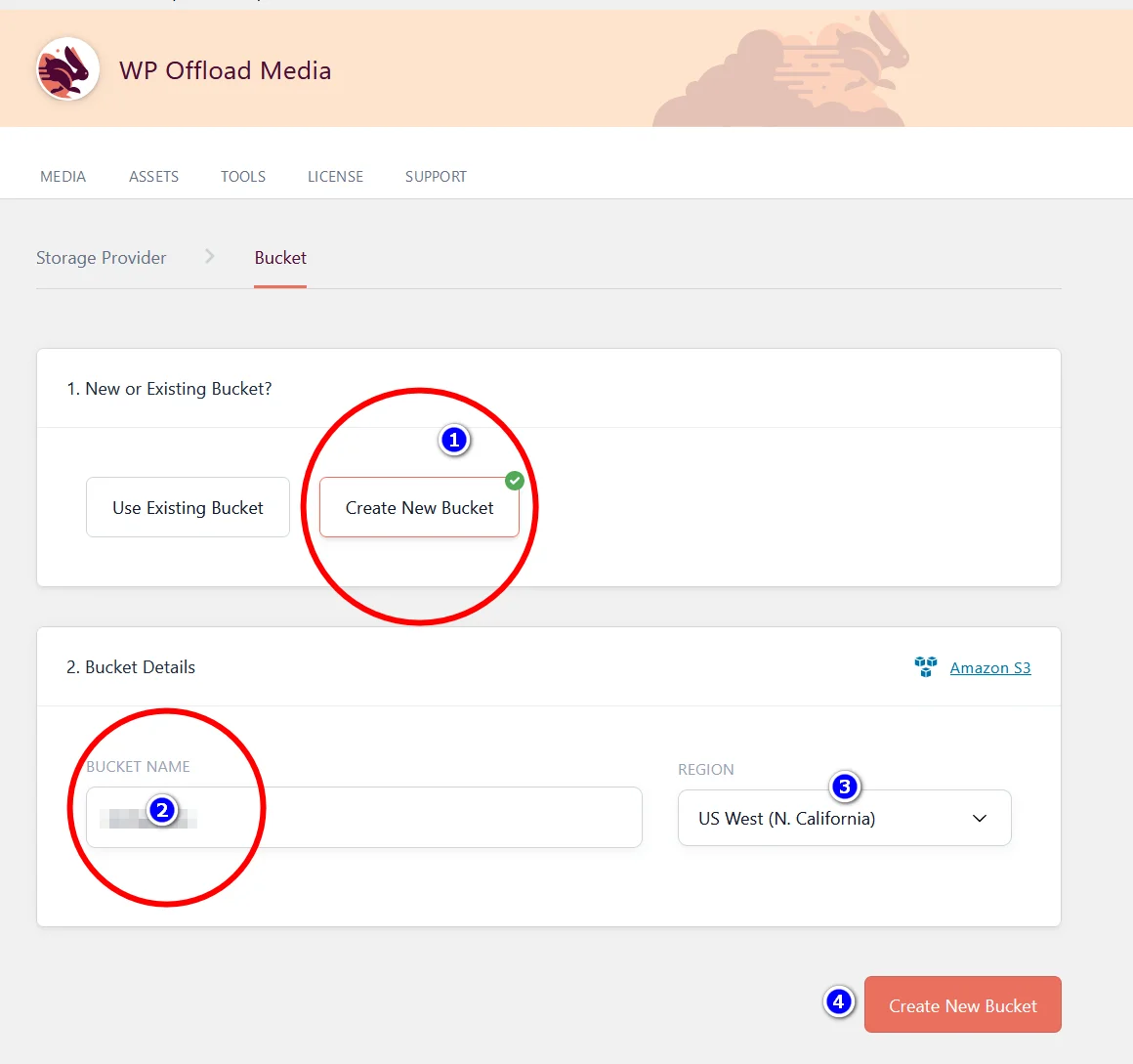

Create a New S3 Bucket

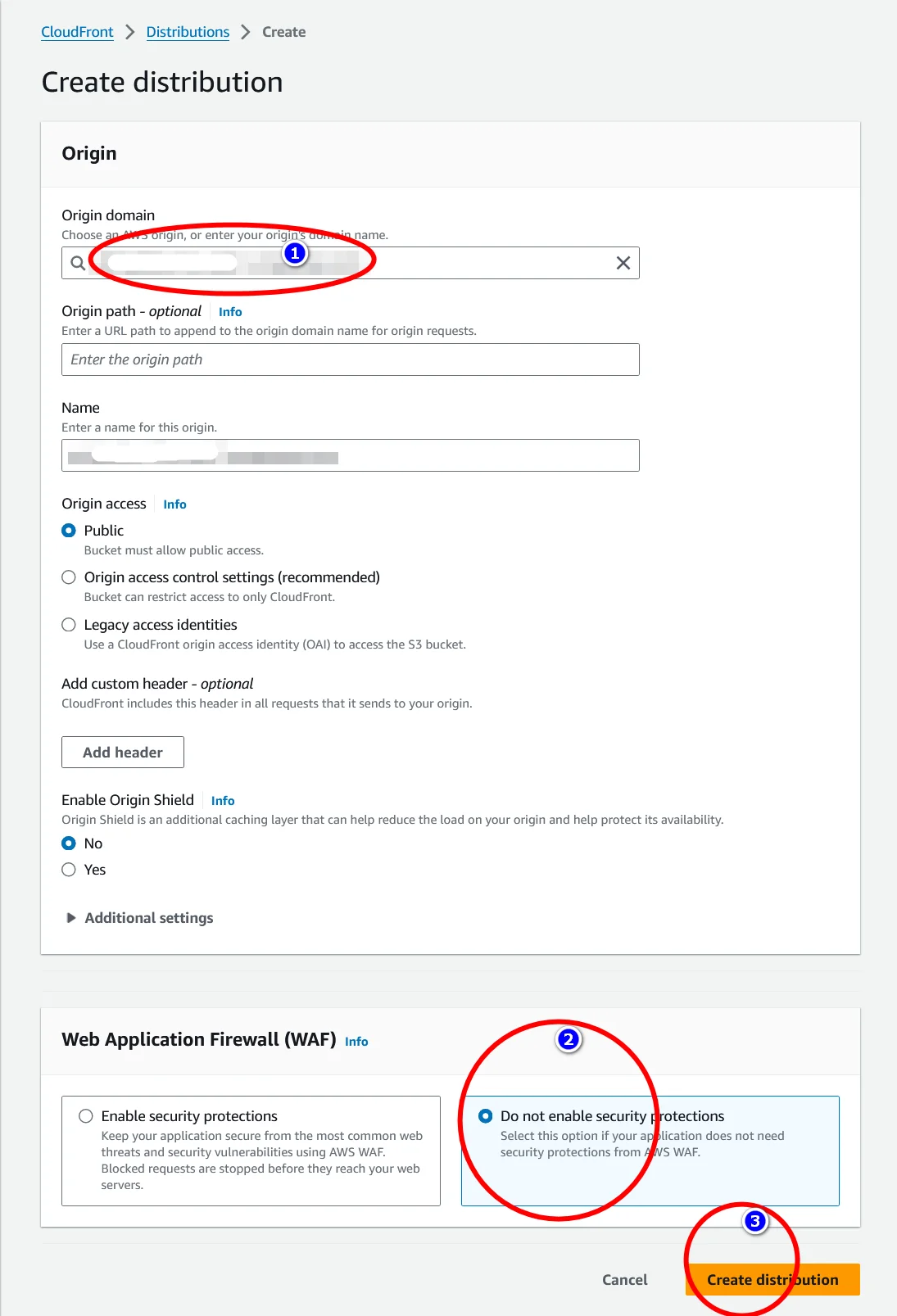

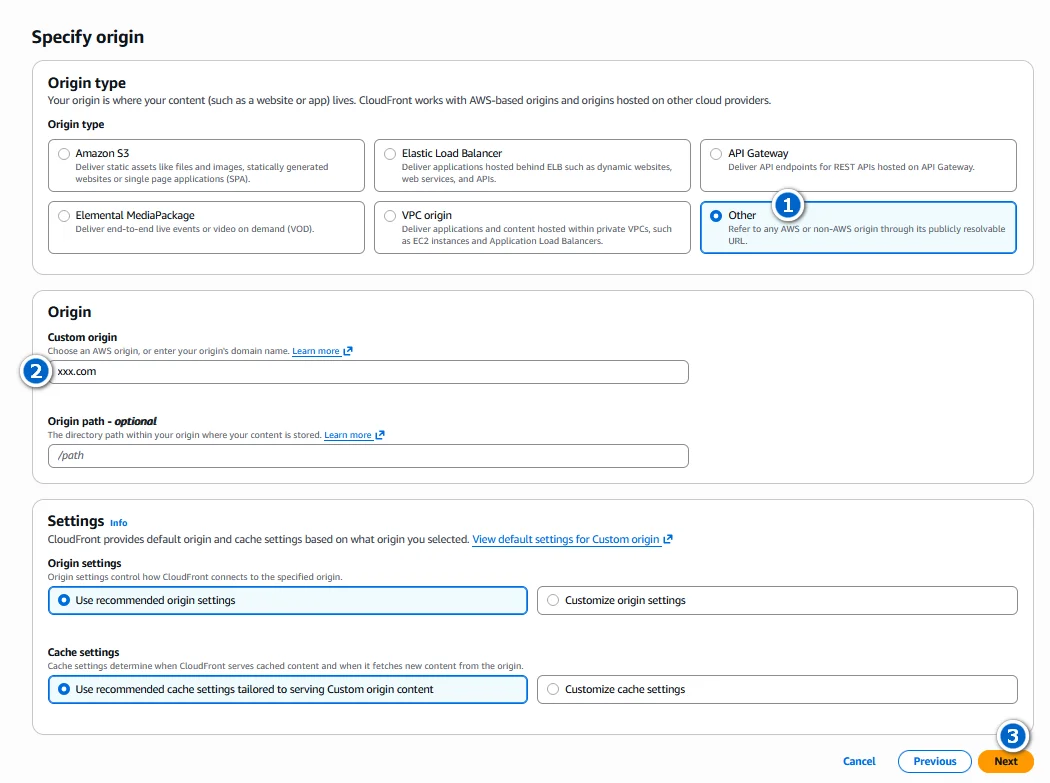

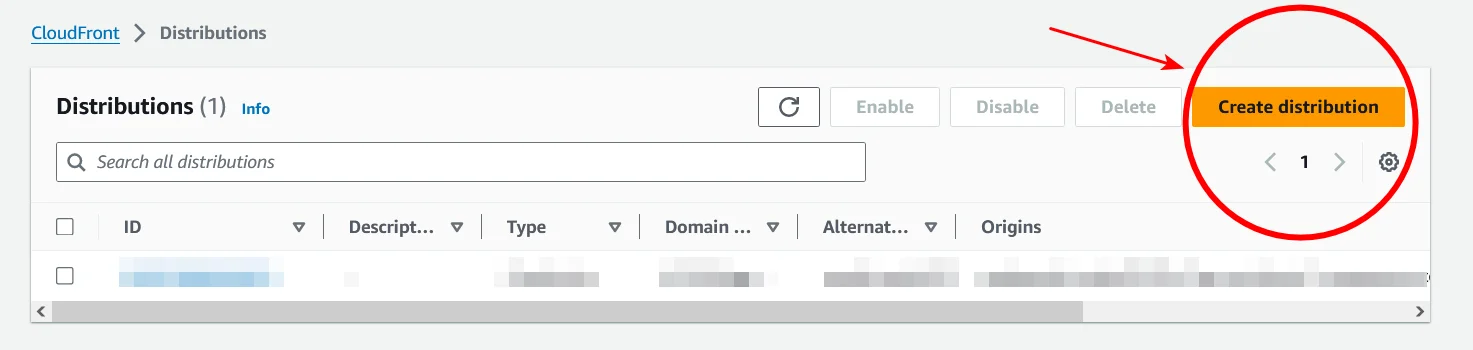

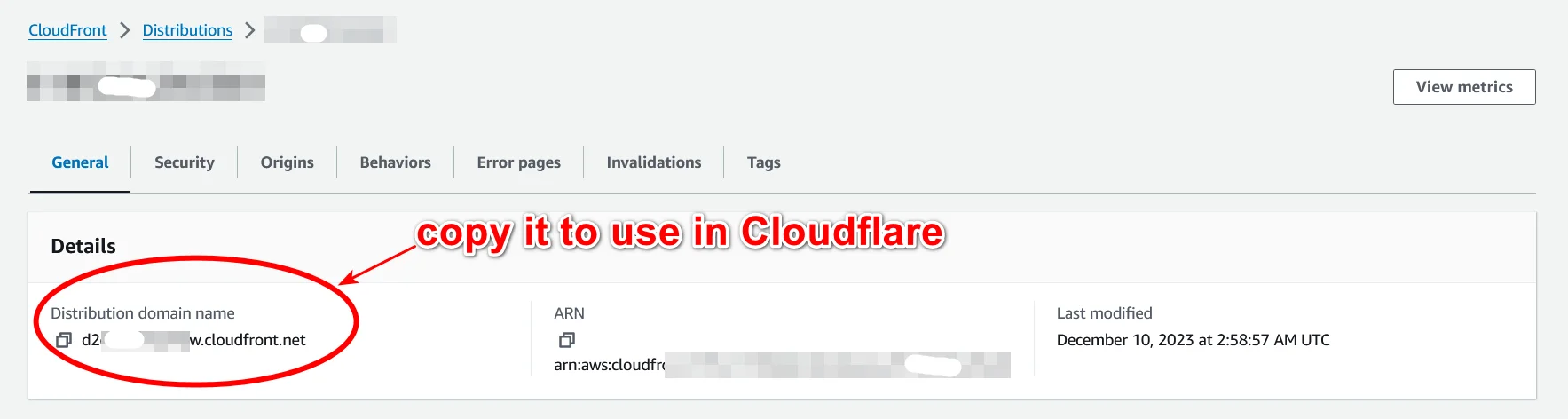

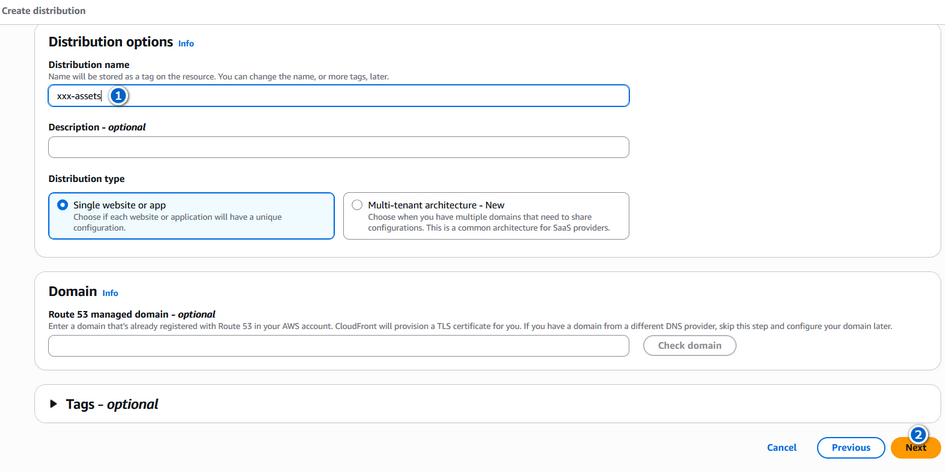

Setup Cloudfront CDN

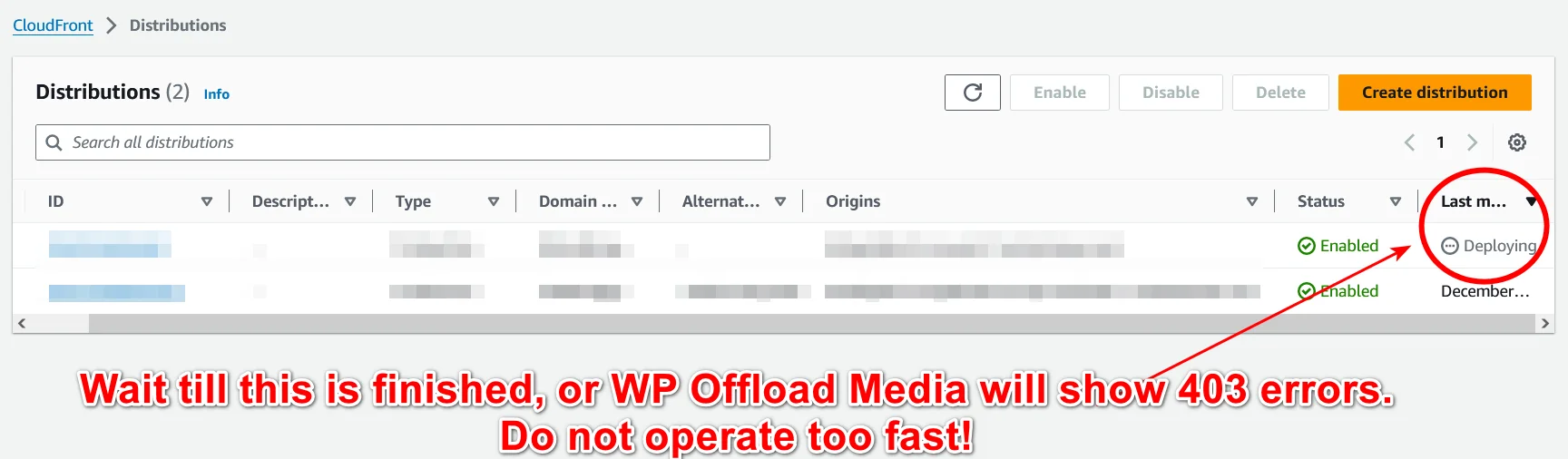

It is very important to wait till the distribution is finished and then proceed to the next step.

I once did the operation too fast and when I went to the next step, it showed me this error:

⚠️Offloaded media URLs may be broken. An error was encountered while testing the domain: Received 403 from endpoint

I spent a lot of time searching for answers and finally found out that it was because the distribution was not finished. Hope that helps you as well.

Add a Custom Domain Name

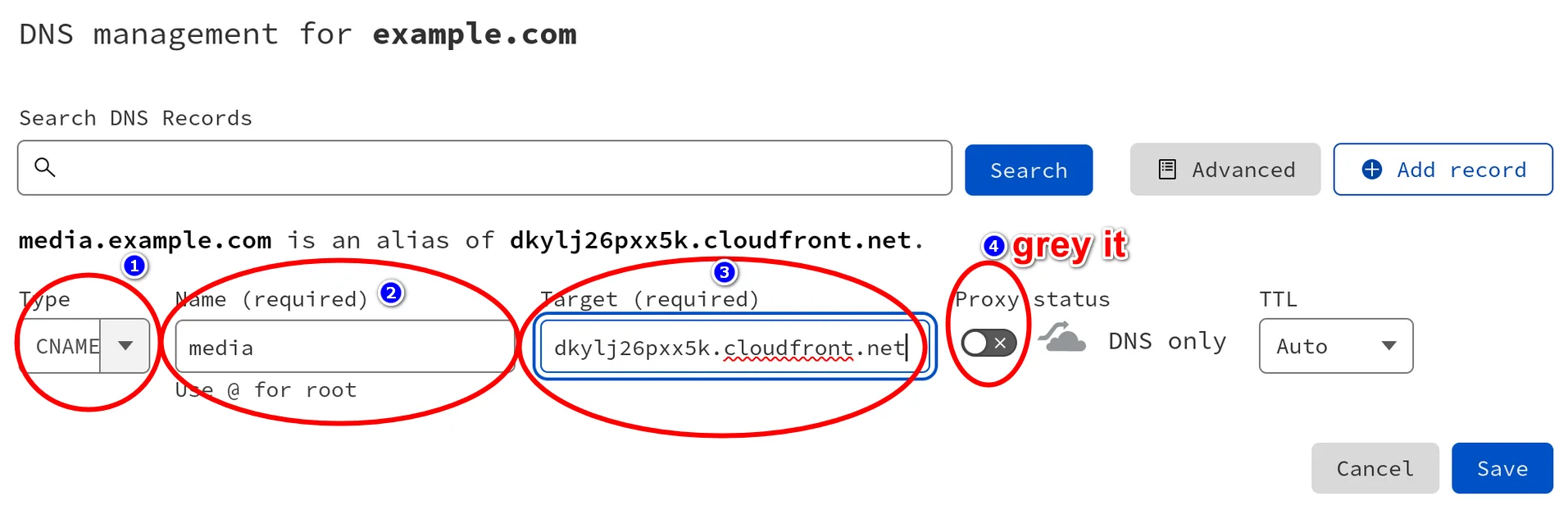

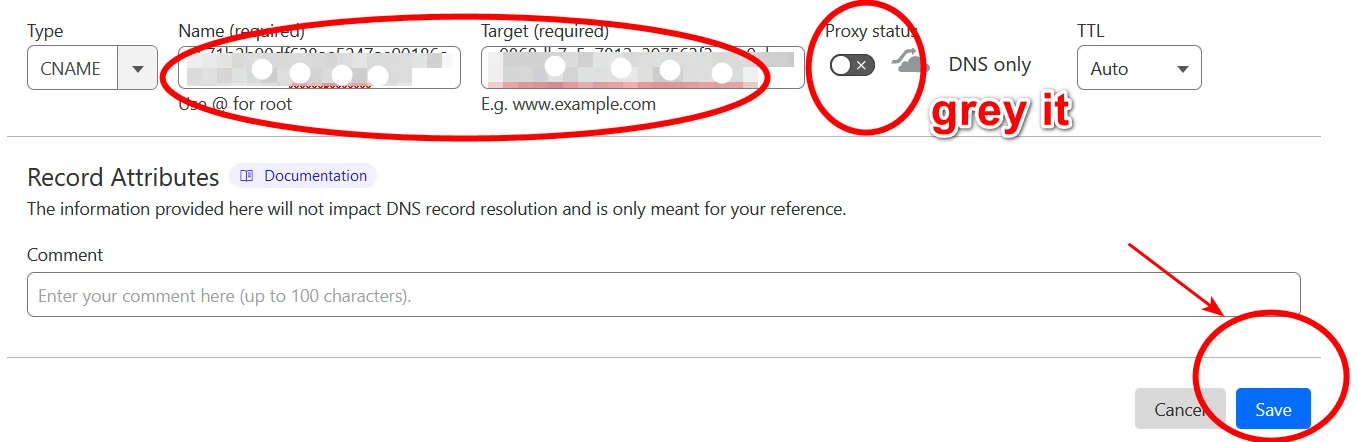

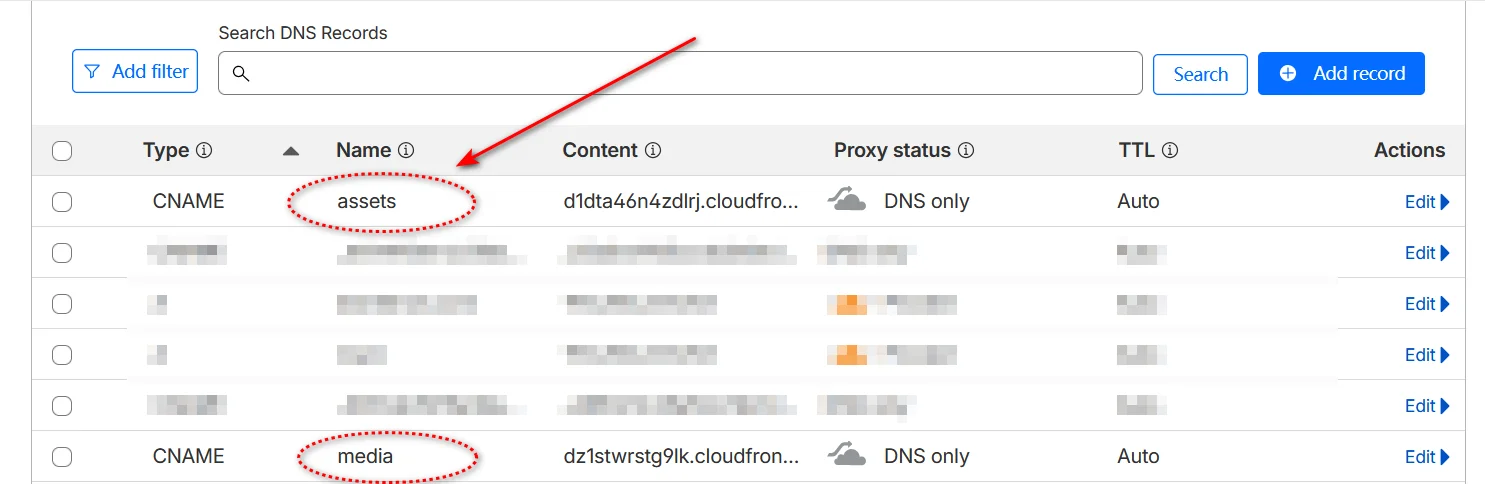

Go to Cloudflare to add a CNAME

Must do it or you will get this error:

⚠️Offloaded media URLs may be broken due to an invalid delivery domain. media.example.com did not resolve to an IP address

Create and Add HTTPS Certificate to Distribution

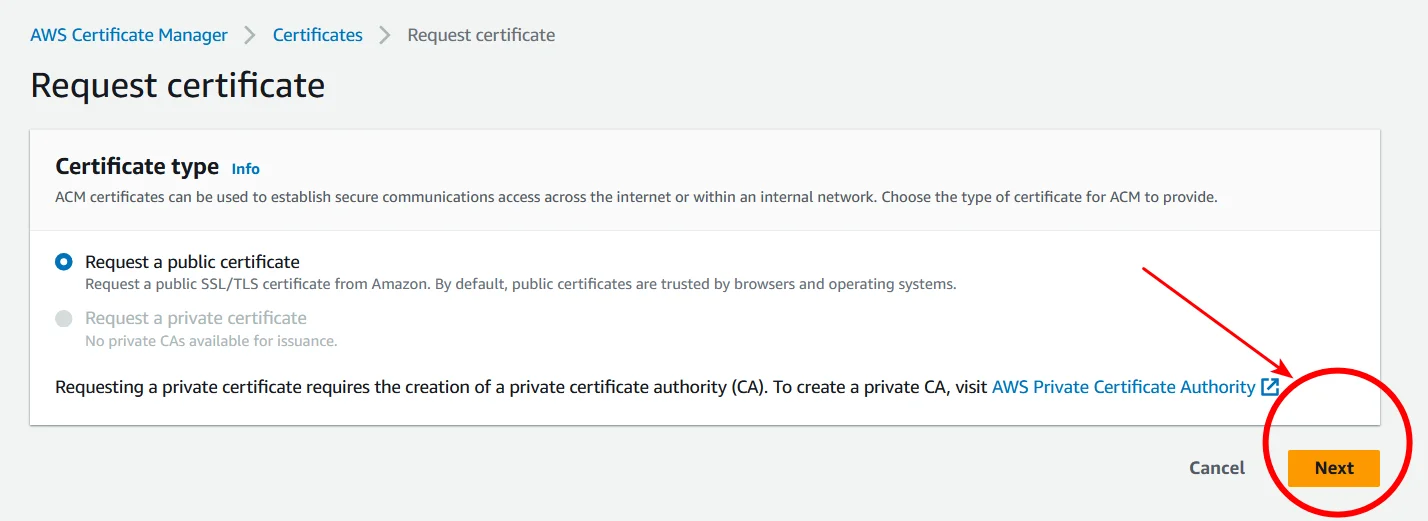

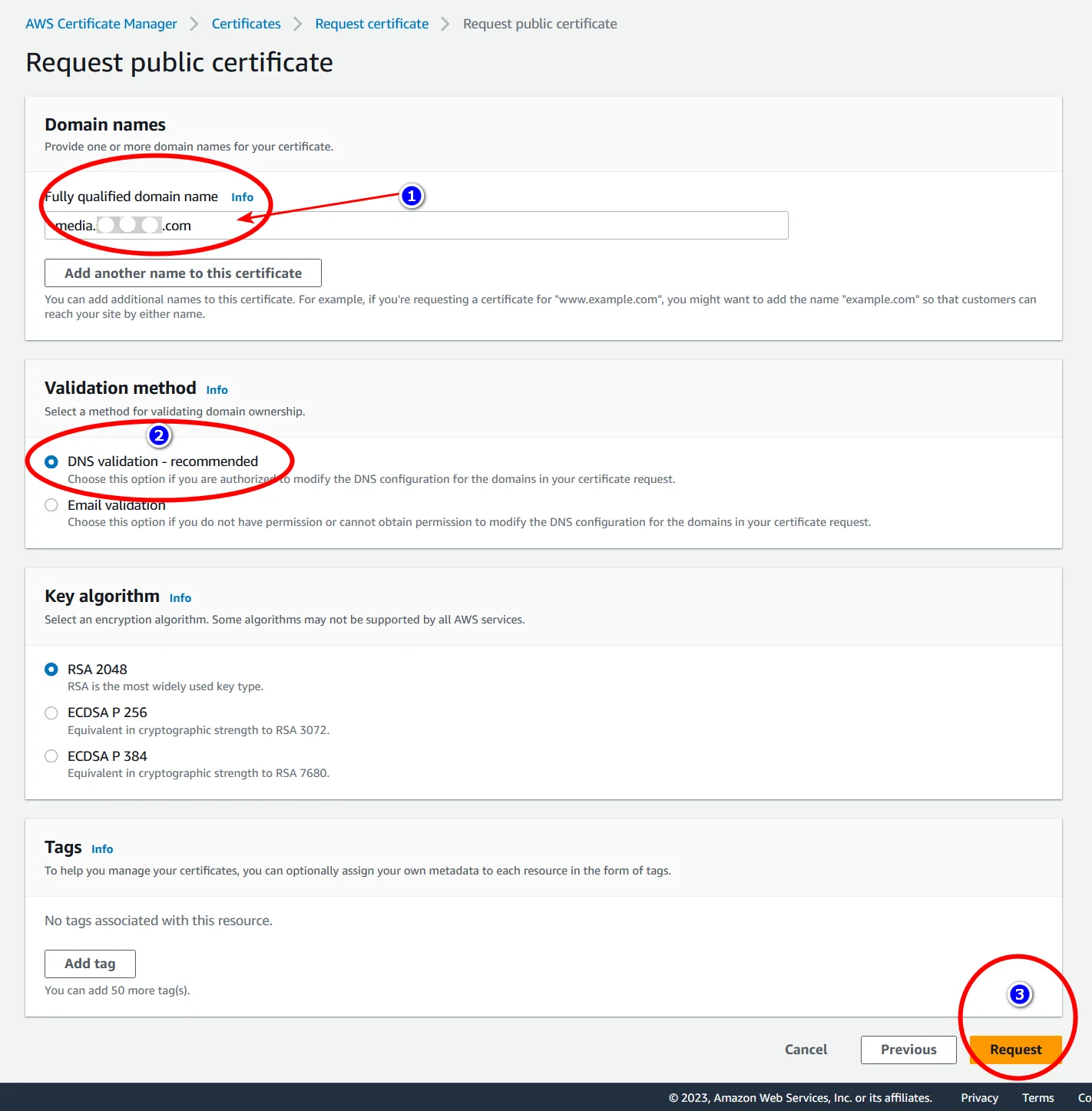

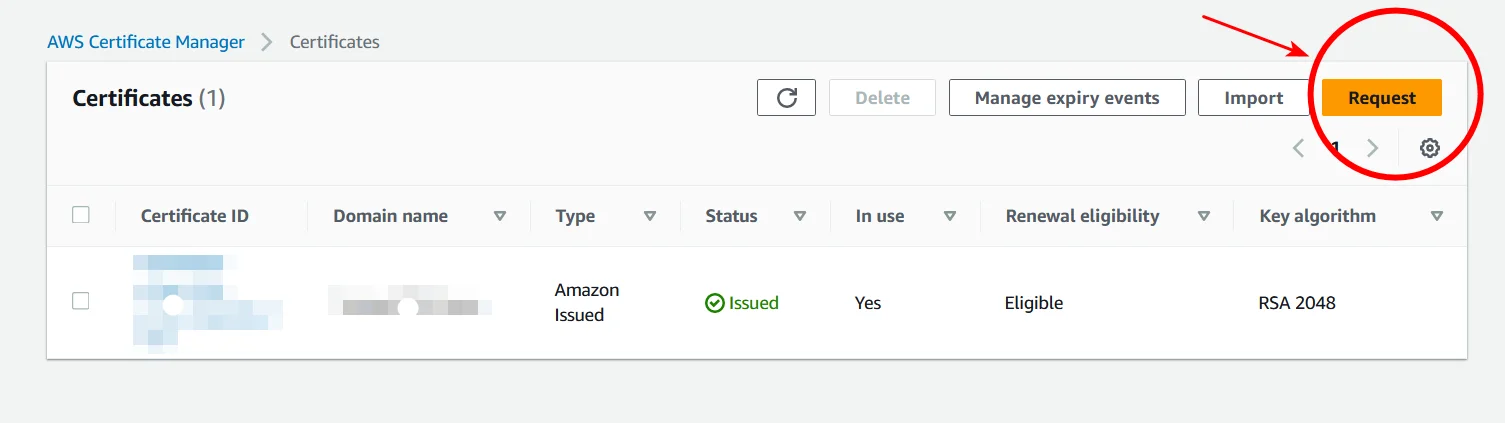

Log into the AWS Console and visit the AWS Certificate Manager page.

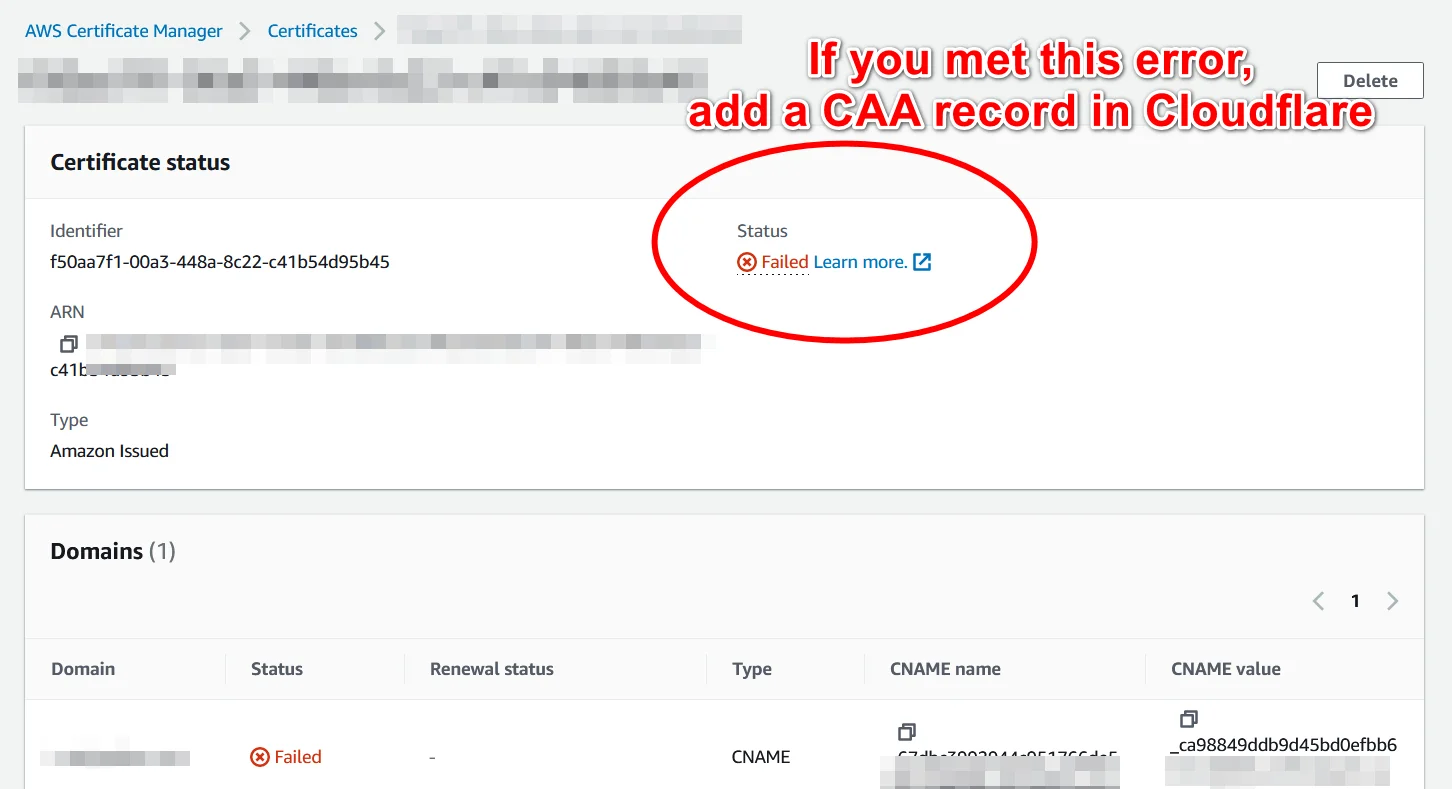

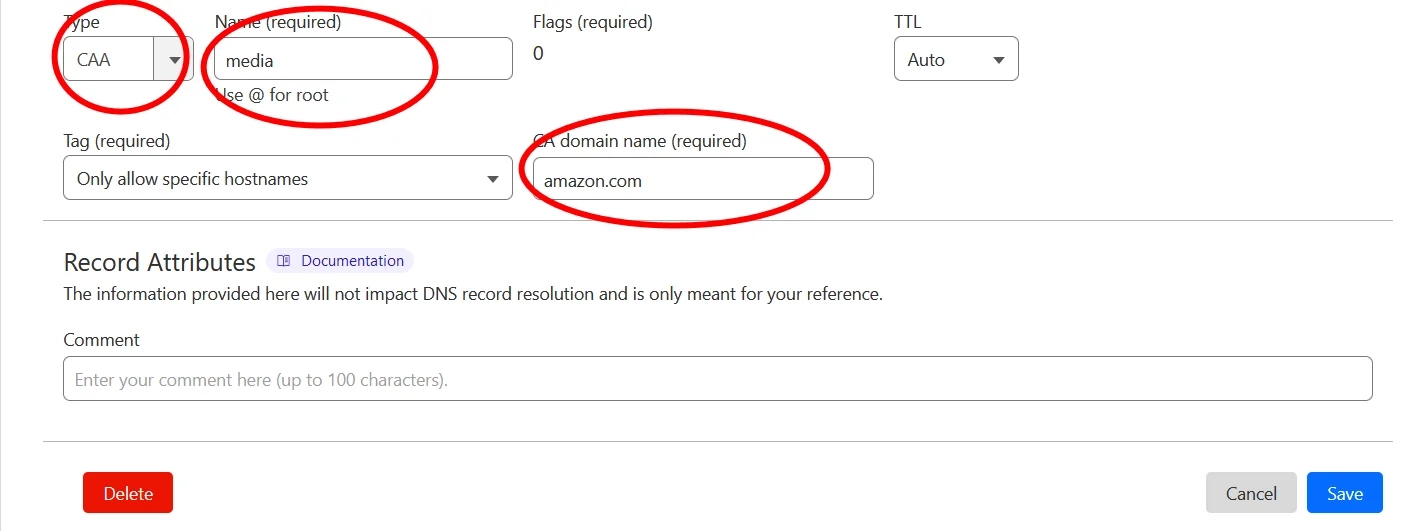

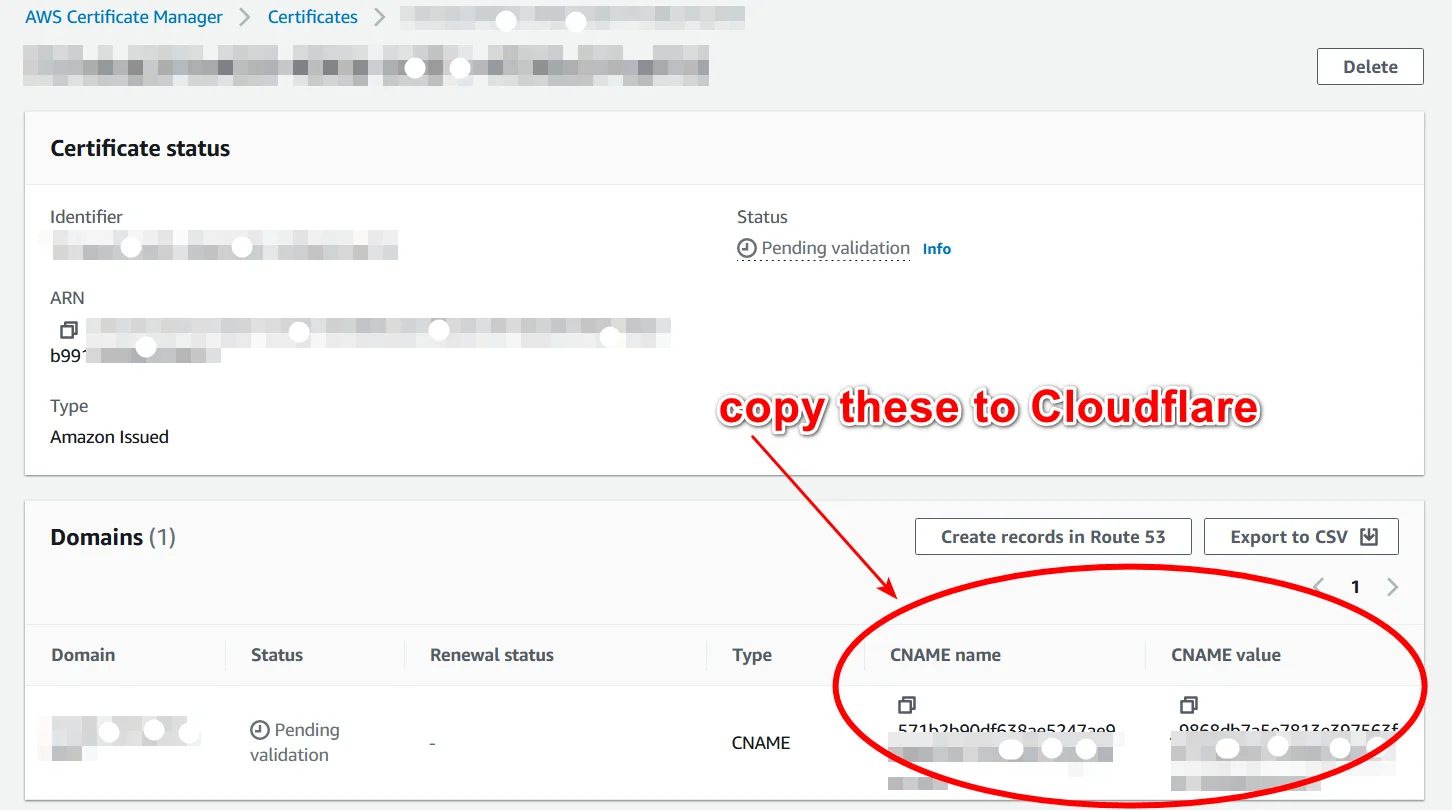

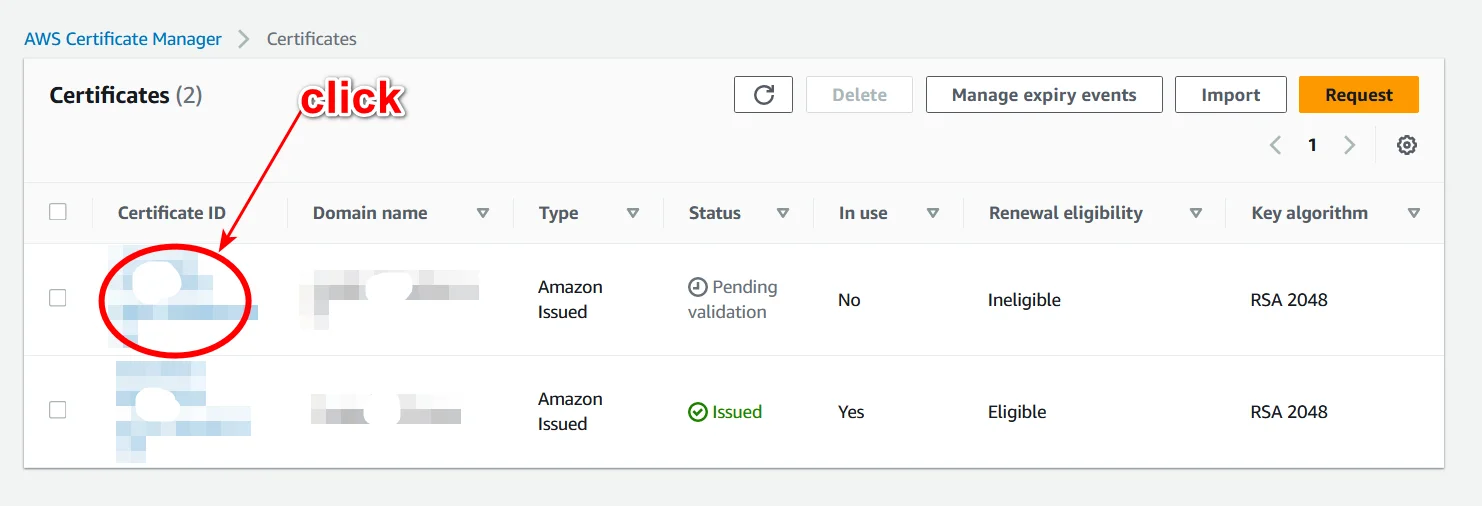

However, I’ve met this error while requesting the certificate:

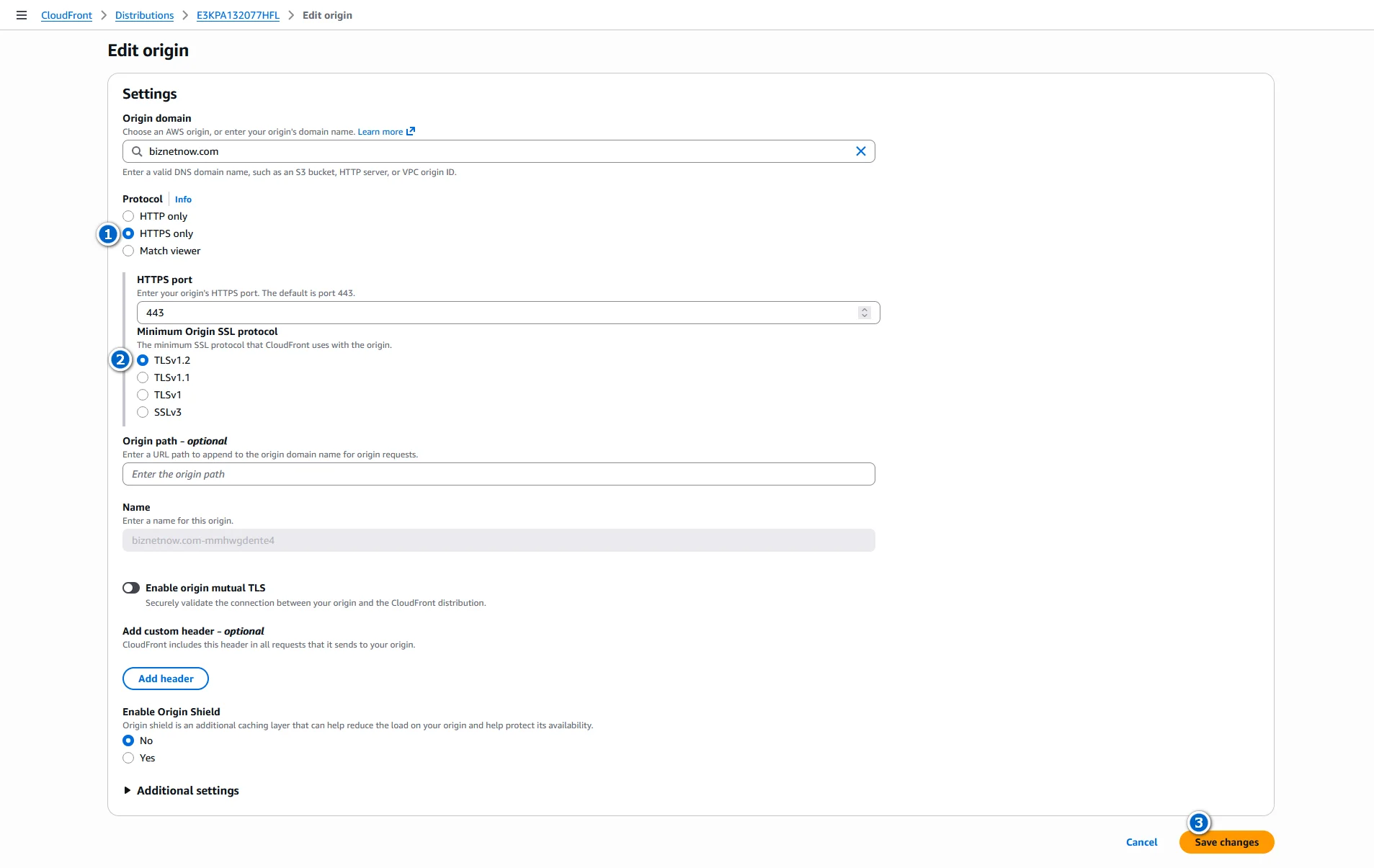

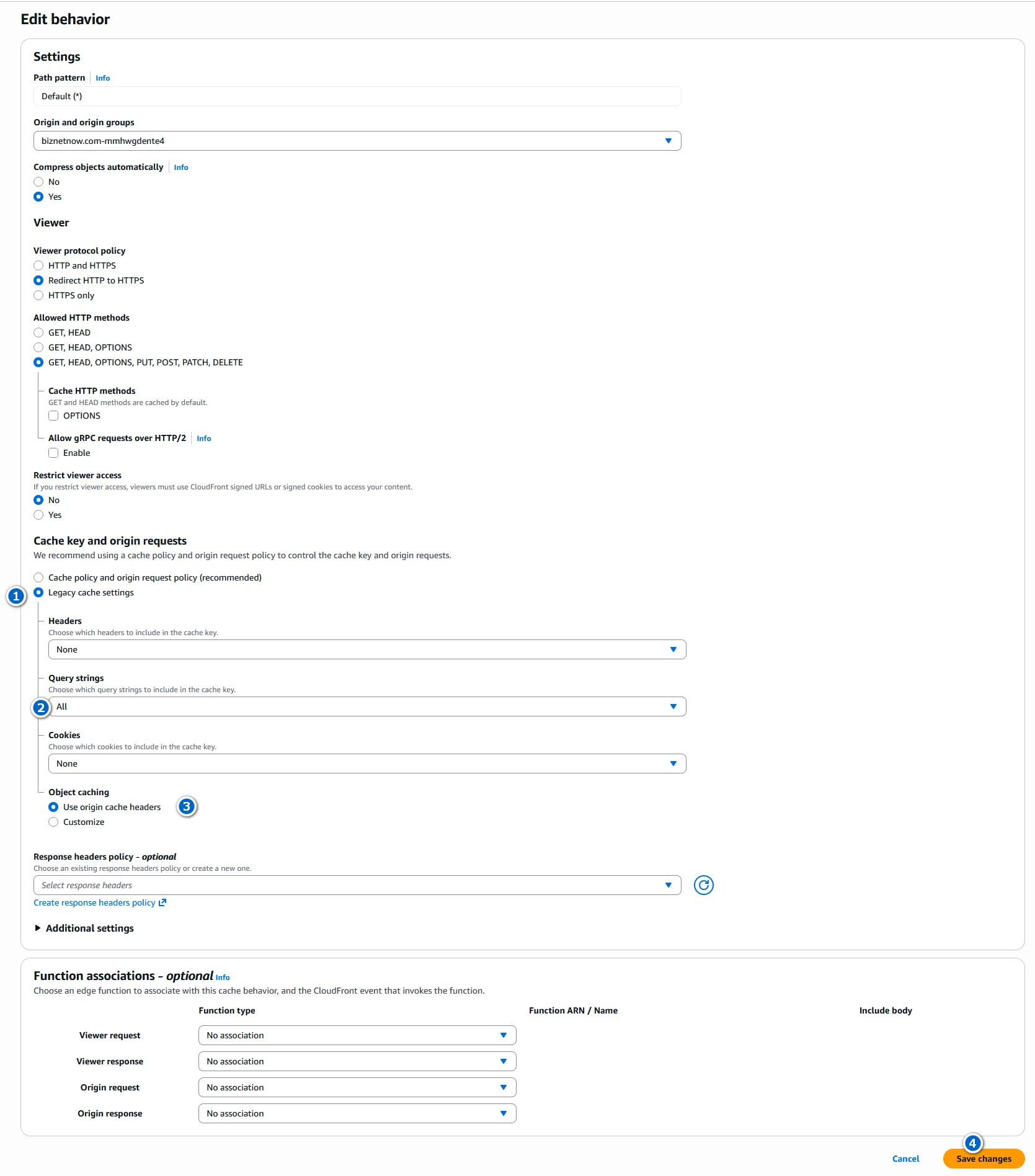

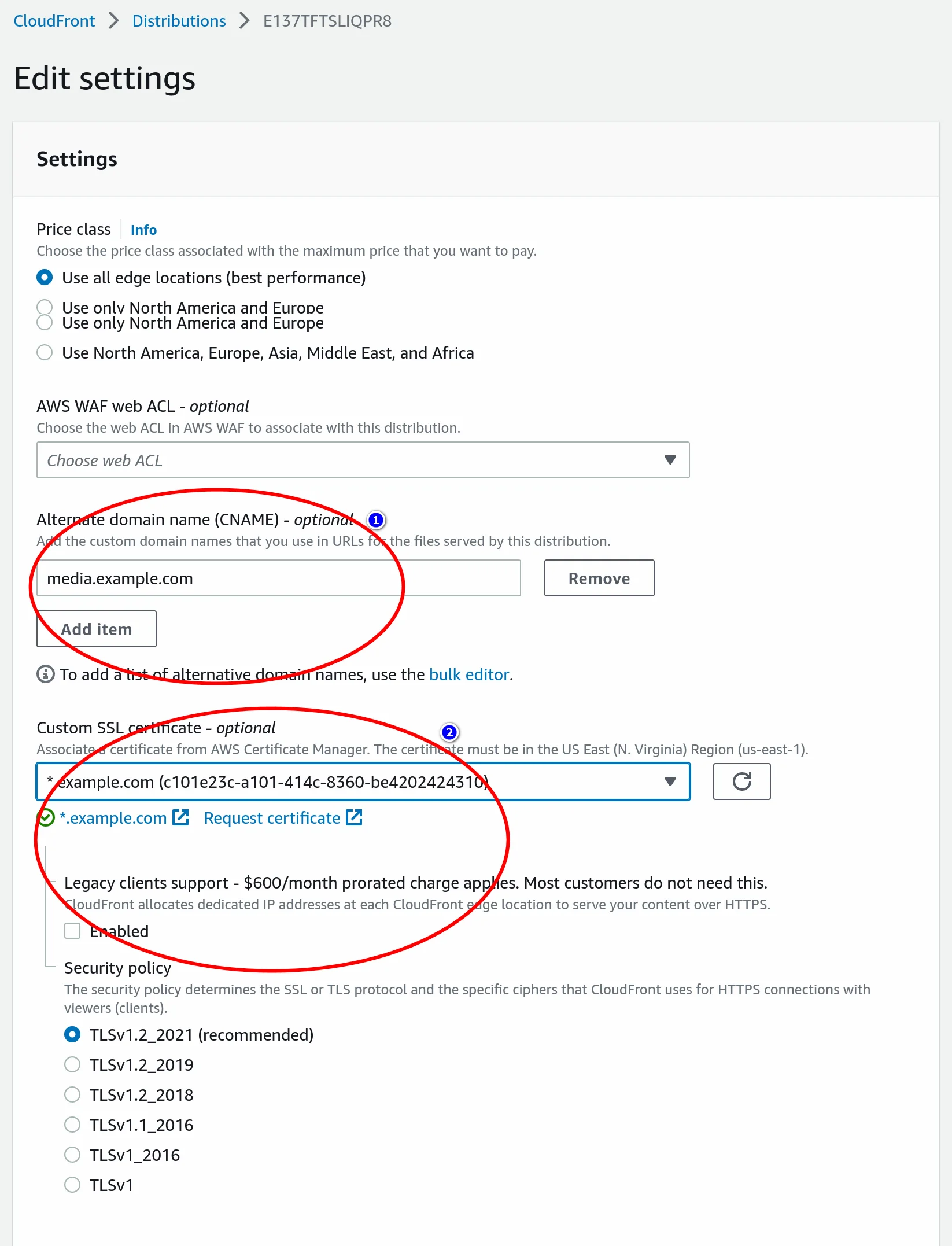

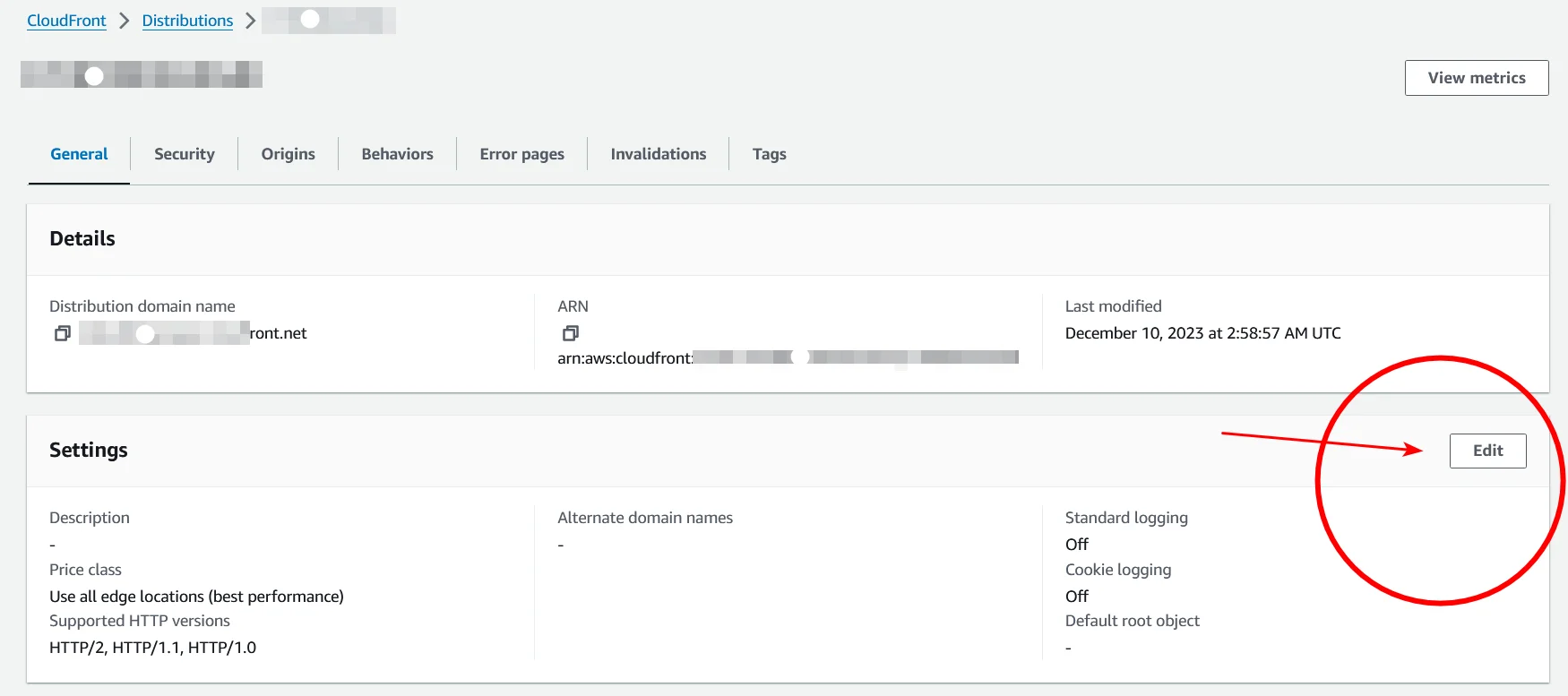

Go back to the Distribution page

Must finish these two steps, especially Step 1, or you will get this error:

⚠️Offloaded media URLs may be broken. An HTTP connection error was encountered: cURL error 35: error:14077410:SSL routines:SSL23_GET_SERVER_HELLO:sslv3 alert handshake failure

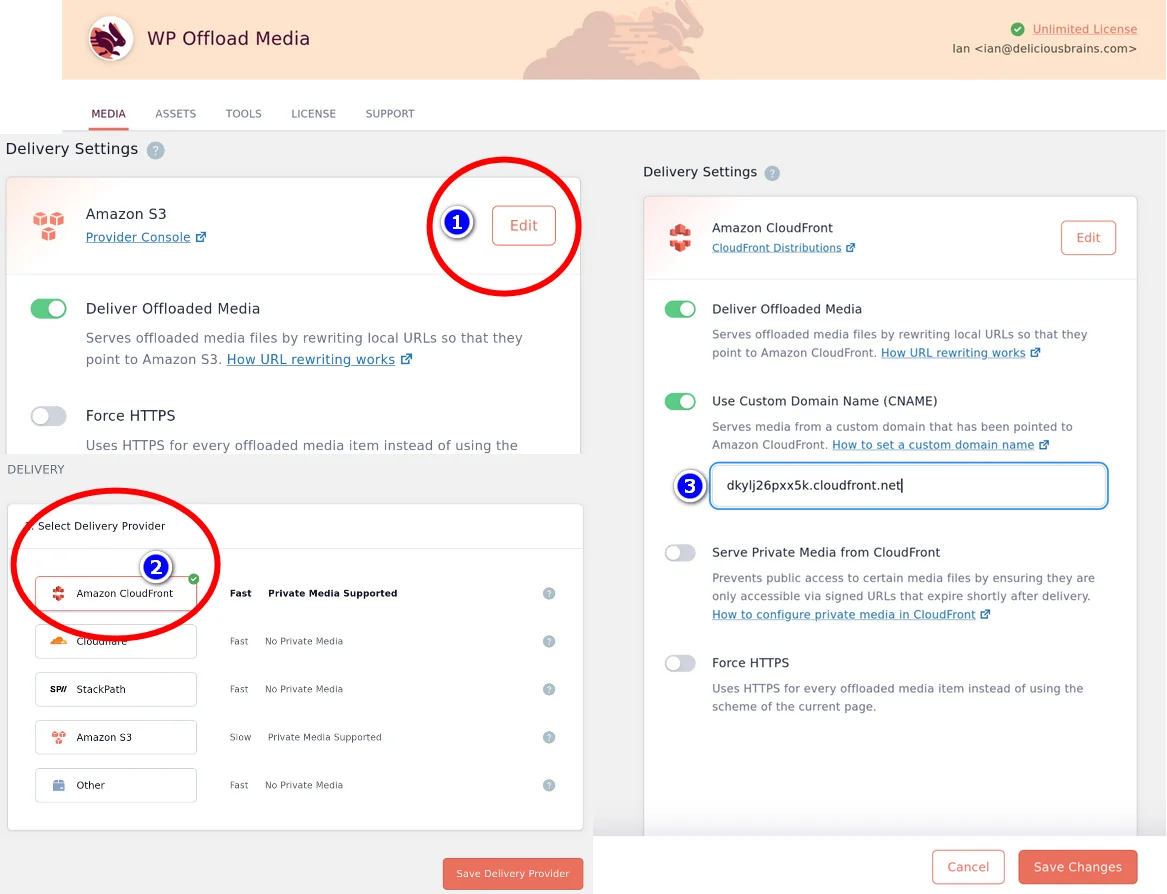

Configure WP Offload Media to use Amazon CloudFront

Block All Public Access to Bucket

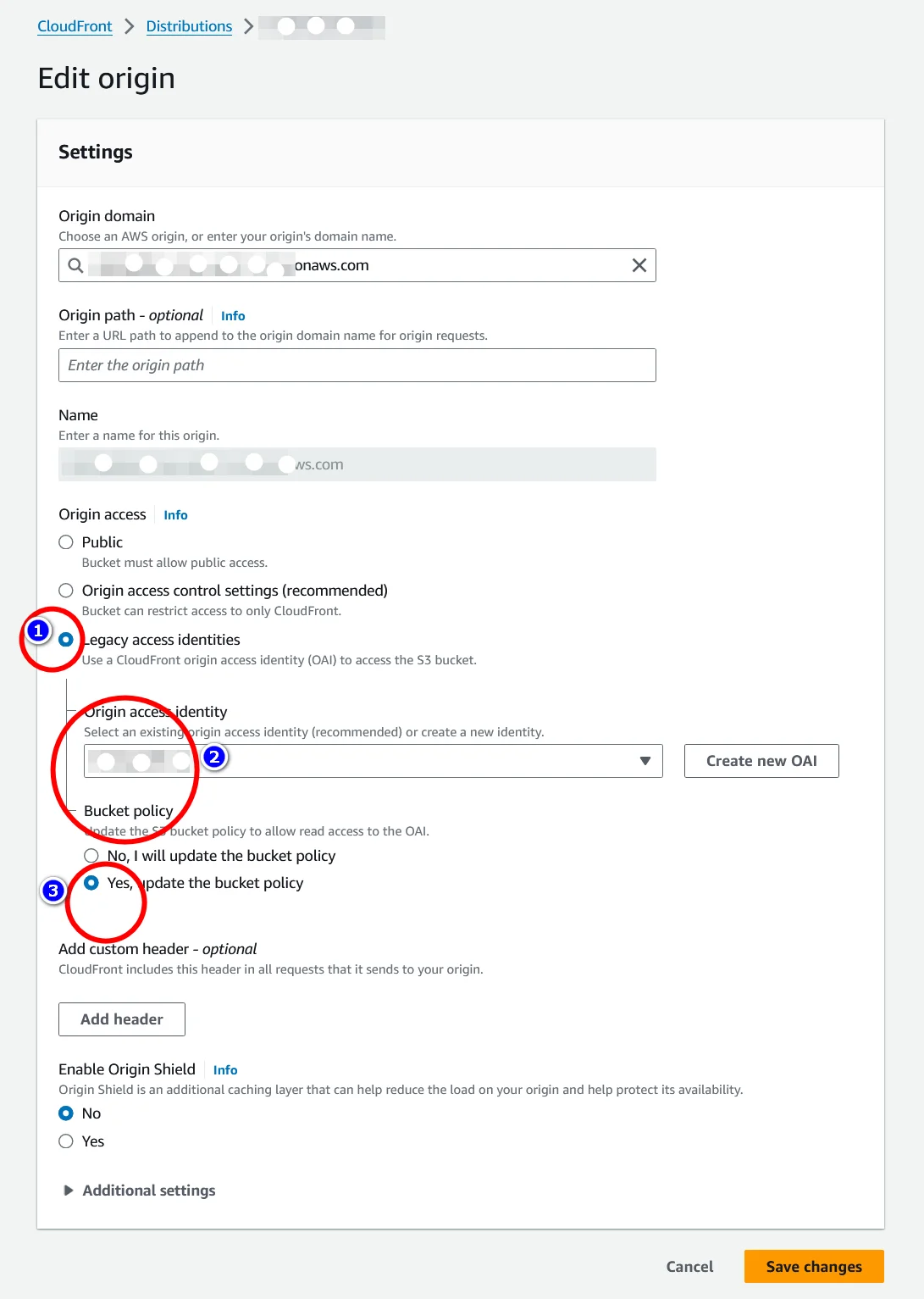

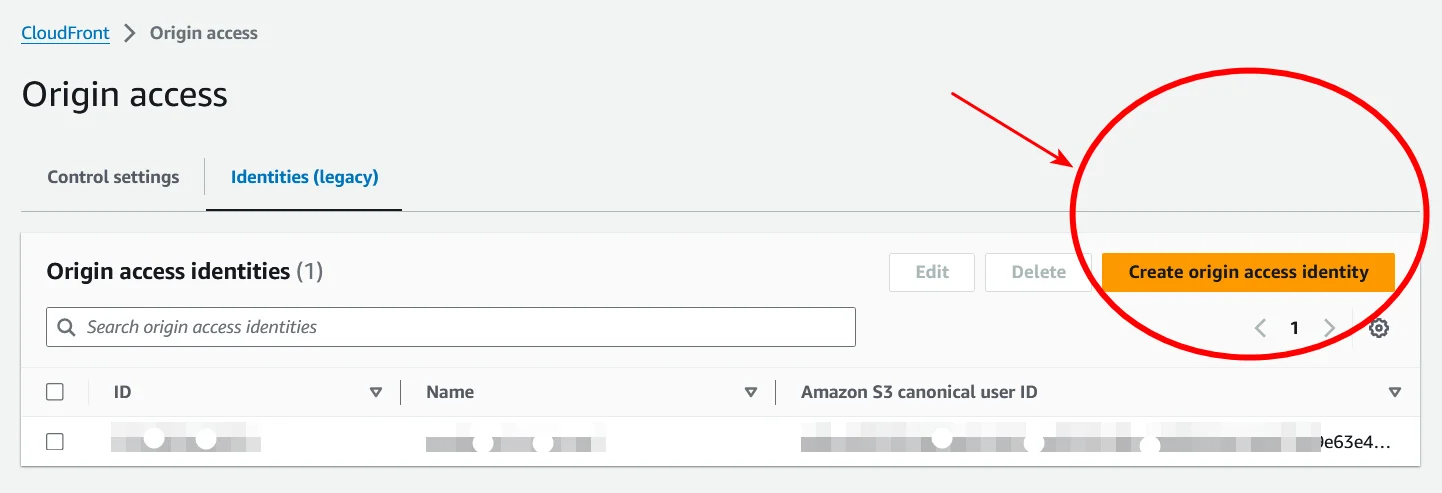

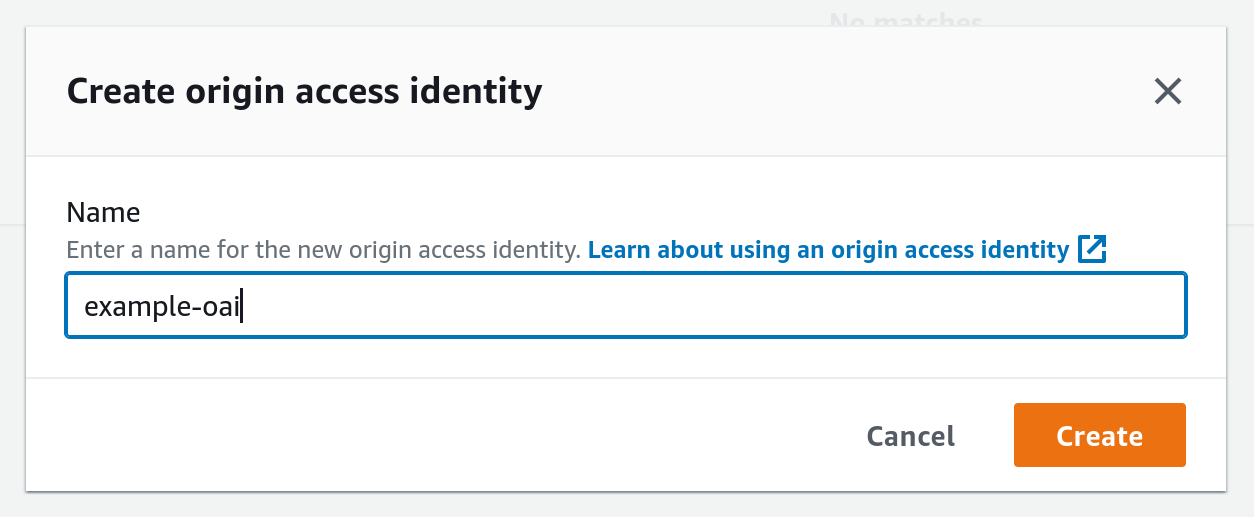

Log into the AWS console and visit the Origin access

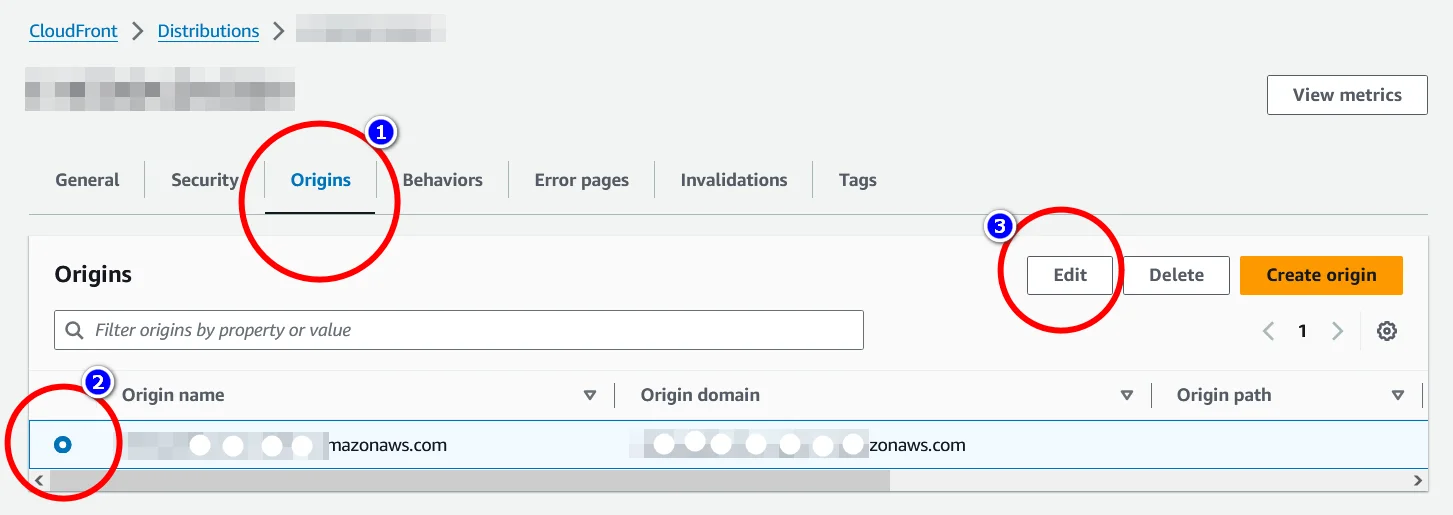

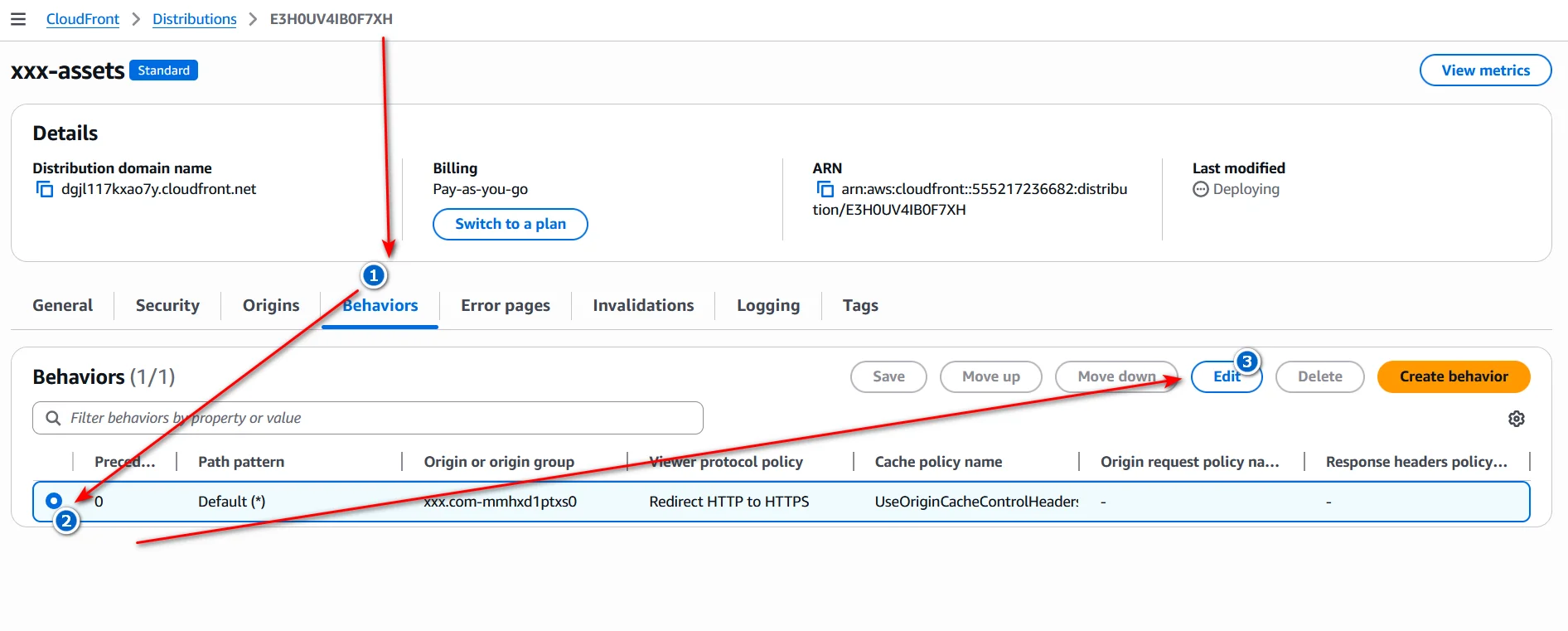

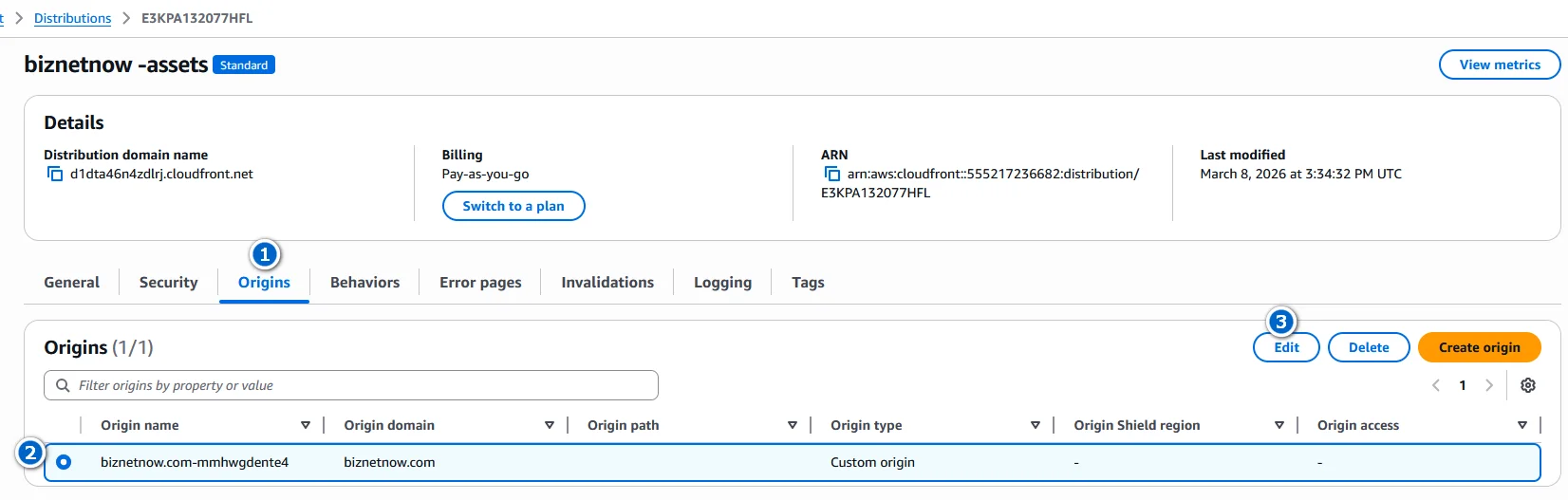

Go back to the Distribution page

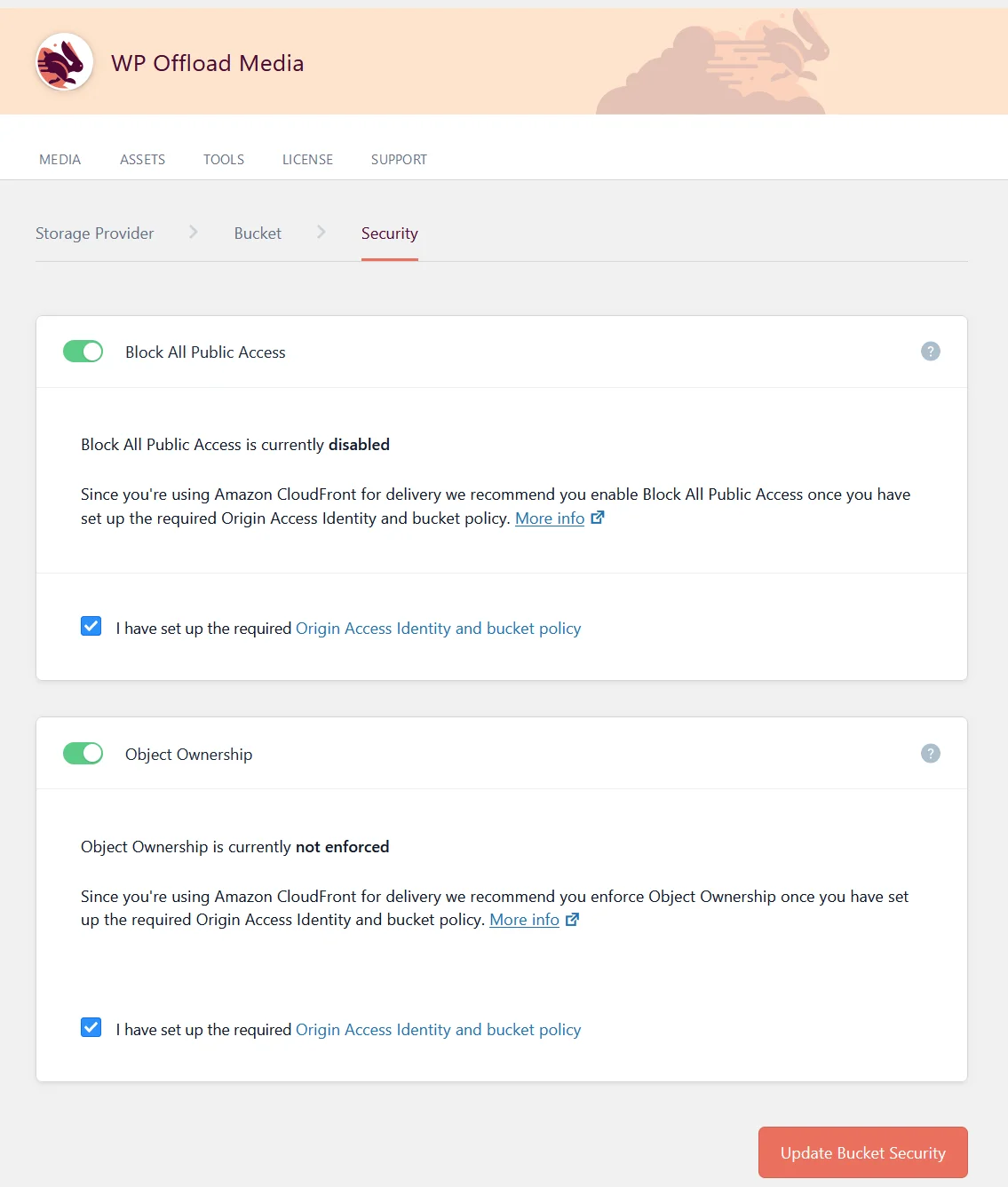

Enable Block All Public Access for Bucket via WP Offload Media

Potential issues:

WP Offload Media Stops working

Well I met this when there’s a large amount of files in the Media library and I checked “Remove Local Media”.

So, you can check the file: youdomain/wp-content/debug.log in the server to see if it outpus “AS3CF: Error removing local file. Ownership or permissions are mis-configured”, which indicates that WP Offload Media is trying to delete local copies of files from your server after uploading them to Amazon S3 (likely because you have the “Remove Files From Server” option enabled), but it lacks the necessary permissions to do so.

I remembered that I copied those files and their permissoins were increectly set.

You can use this command line to set them right:

find /www/wwwroot/yousite/wp-content/uploads/ -type d -exec chmod 755 {} \;
find /www/wwwroot/yousite/wp-content/uploads/ -type f -exec chmod 644 {} \;

WP Offload Media Plugin”MissingAllowOriginHeader” Error for Kadence Image-Mask
